Outdoor Advertising Fixed LED Display P10 960x960mm Die-Casting
Aluminum LED Cabinet
DESCRIPTION
Outdoor fixed installation LED Display / Big commercial advertising
LED screen / IP65 protection level, waterproof and anti-salt, can
be installed seaside / High brightness and low power consumption, energy-saving design optional.
FEATURES
Die-casting aluminum material, only around 23kg/cabinet, save
shipping cost.
Fast fixed lock design, easy and quick installation, save labor
cost.
Good flatness, no bright and dark lines after splicing.
Can be used for indoor, outdoor, fixed, rental and perimeter
display.
TECHNICAL SPECIFICATIONS
| Product Model: | P5 | P6.67 | P8 | P10 |
| Pixel Pitch: | 5 mm | 6.67 mm | 8 mm | 10 mm |
| LED Type: | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960×960x111 mm | 960×960x111 mm | 960×960x111 mm | 960×960x111 mm |
| Module Size: | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm |
| Cabinet Weight: | 28 kg | 28 kg | 28 kg | 28 kg |
| Cabinet Material: | Die-casting AL | Die-casting AL | Die-casting AL | Die-casting AL |
| Driving Type: | 1/8 | 1/6 | 1/5 | 1/2 |
| Brightness: | >5200 nits | >6000 nits | >5800 nits | >6000 nits |
| Max/Avg Power: | 732/256 W/m2 | 900/315 W/m2 | 900/315 W/m2 | 850/298 W/m2 |
| Maintenance: | Rear service | Rear service | Rear service | Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
DRAWING

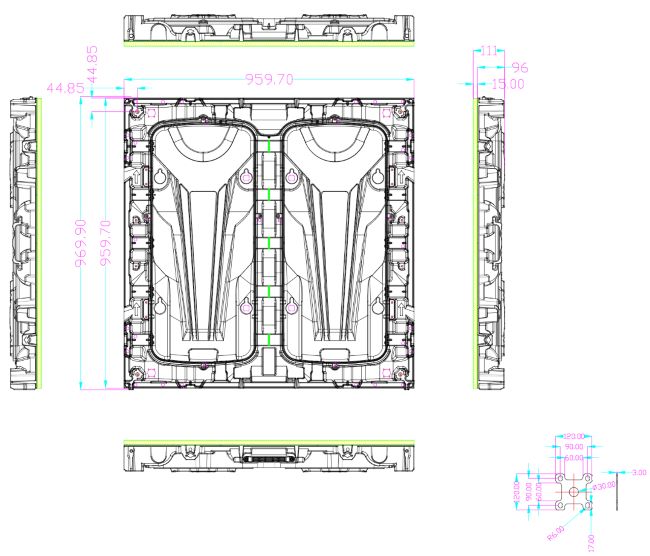

Outdoor 960x960x111mm Die-casting Aluminum LED Cabinet.
PICTURES

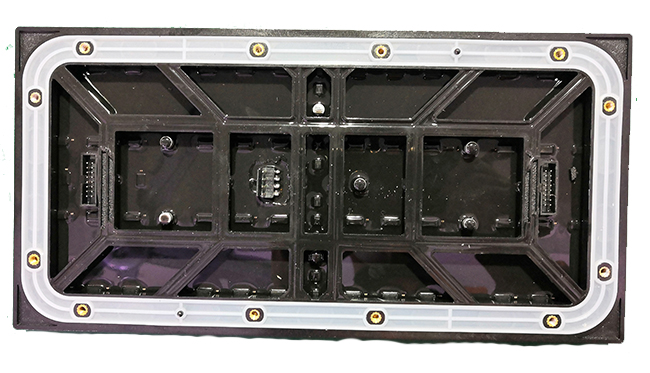

320x160mm rear maintenance LED module

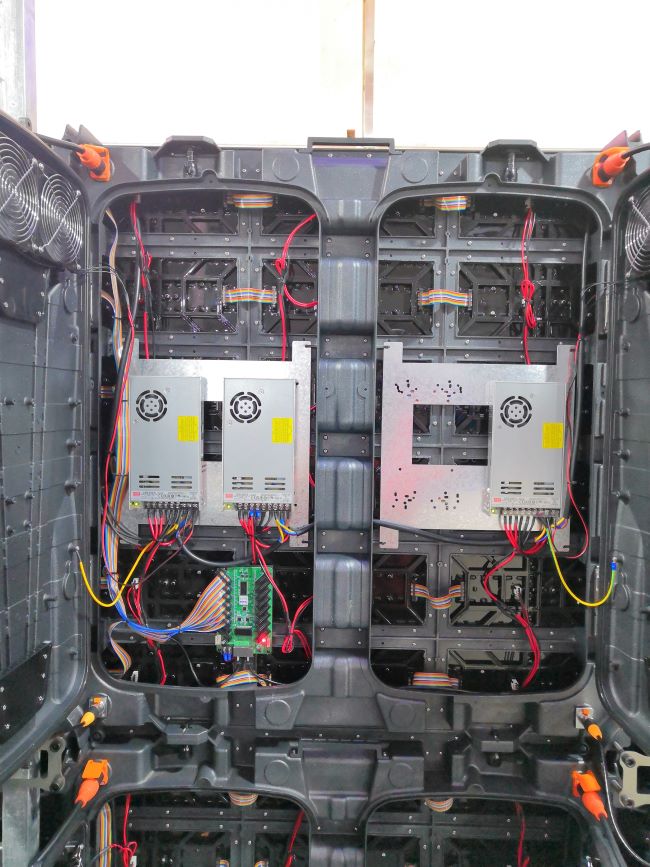

Good heat dissipation, certificated meanwell power supply.
LED module aging 72 Hours, LED screen aging 48 hours in factory
before shipping.
APPLICATION
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are LED manufacturer, OEM & ODM optional, multi-solutions
provider, more than 10 years experience in LED industry! What’s
more, Visual World is a modern factory dedicated to applying
artificial intelligence to the LED industry.
2. Q: How about the warranty?
A: We provide at least 2 years warranty, and some products can be 5
years warranty. Even after the warranty, we can still repair
product for free, you just need to pay for the shipping cost.
3. Q: Can you customize my logo on LED display?
A: Of course, we can print your logo on PCB and LED Cabinet if you
need. Thus you will keep your own brand.
