Outdoor P3.9 1000*1000mm Aluminum LED Cabinet Fixed Installation
LED Display Screen
Outdoor full front service fixed installation LED Display /
Aluminum profile light LED cabinet / Slim 1000*1000mm aluminum
profile LED panel / Anti-salt IP67 seaside LED screen / Good heat
dissipation fanless outdoor LED screen
FEATURES
Aluminum profile LED cabinet, only around 29kg/sqm, save shipping
cost.
Fanless design, aluminum bottom base of module, good heat
dissipation
100% full front maintenance, LED module and power box all can be
took out from front side.
The cabinet thickness is only 90mm, super slim.
TECHNICAL SPECIFICATIONS
| Product Model: | P3.9 |
| Pixel Pitch: | 3.9 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×1000x90 mm |
| Module Size: | 500x250 mm |
| Cabinet Weight: | 29 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/8; 1/16 |
| Brightness: | >6000 nits |
| Max/Avg Power: | 800/265 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | F: IP65, R: IP65 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
DRAWING

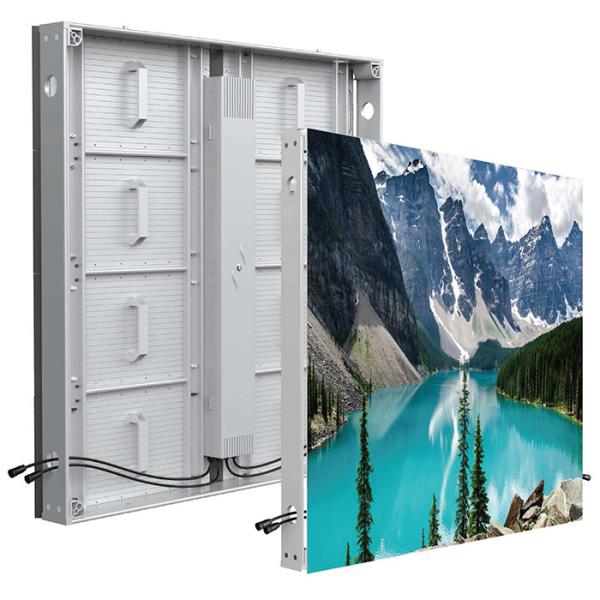

Outdoor 1000x1000x90mm Aluminum Profile LED Cabinet.
PICTURES
Good appearance, simple and clean, no cable in the back side
APPLICATION
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are LED manufacturer, OEM & ODM optional, multi-solutions
provider, more than 10 years experience in LED industry! What’s
more, Visual World is a modern factory dedicated to applying
artificial intelligence to the LED industry.
2. Q: How about the warranty?
A: We provide at least 2 years warranty, and some products can be 5
years warranty. Even after the warranty, we can still repair
product for free, you just need to pay for the shipping cost.
3. Q: Can you customize my logo on LED display?
A: Of course, we can print your logo on PCB and LED Cabinet if you
need. Thus you will keep your own brand.
