Indoor P1.56 Fine Pitch LED Panel for Broadcast Cinema 600x337.5mm
For demanding applications like corporate boardrooms, broadcast
suites, or control rooms, AV integration with fine pitch video
screens has just gotten simpler. The FP-Micro LED platform provides
high-end LED video wall for settings where great pictures matter.
Product Quick Details:
1. HDR technology
2. Slim panel design
3. Adjustable mounting frame
4. Front maintenance
5. Modular design-saves on spare parts
FEATURES
Long-term video installations require sophisticated fine pitch LED
displays, which is why FP-Micro LED panels are being developed to
satisfy those needs. High-end performance and unparalleled
aesthetic qualities go hand in hand with easy installation,
adaptable design, low-key operation, and affordable maintenance.
1. HDR TECHNOLOGY
Go for great results. HDR technology creates excellent visuals with
added color depth.
2. SLIM AND SUPERB PANEL
In housing panel, frame and housing design results in a neat and
clear finish and a flawless canvas.
3. EASY MAINTENANCE
Front service to easy panel replacement with vacuum tool.
4. DUAL POWER SUPPLY
Full redundant power systems with optional dual power supply.
5. 16:9 RATIO
Native 16:9 ratio with panel resolution 384*216 creates visual
messaging in any size.
TECHNICAL SPECIFICATIONS
| Product Model: | FP-Micro |
| Pixel Pitch: | 1.5625 mm |
| LED Type: | SMD1212 |
| Cabinet Dimension: | 600x337.5 mm |
| Module Size: | 300x168.75 mm |
| Cabinet Weight: | 5.5 kg |
| Cabinet Material: | Die-casting aluminum |
| Driving Type: | 1/48 |
| Brightness: | 600 nits |
| Max/Avg Power: | 450/135 W/m2 |
| Maintenance: | Front service |
| Environment: | Indoor Use |
| IP Rating: | IP20 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
APPLICATION FIELD
Virtual Studio
Conference room
School hall
Museum history wall
Library education

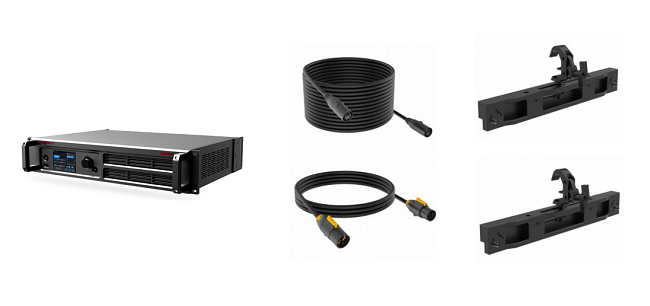

ACCESSORIES
NovaStar controller
Data cable
Power cable
Horinzontal bar
Vertical bar
CASE
Looking for high-end LED products for fix installation? Our
FP-Micro fine pitch led panel with die-casting aluminum cabinets
are the best choice for your premium led projects. With HDR
technology and 16:9 ratio, this product will present spectacular
visual experiences to different high demand application scenarios
such as virtual studio, boardroom, corporate conference room and
etc.
Please feel free to contact us if you are interested!
PRE-SALES SERVICE
-Project solution design
-Project quotation and suggestion
-Project details enrichment
-Cabinet and screen layout
-Power and signal calculation and diagram
-Customized product, module, PCB and etc
ON-SALES SERVICE
-Production process supervision
-Inspection and aging service
-Video content customization
-Cargo package estimation
-Delivery cost consulting
-Shipping arrangement
AFTER-SALES SERVICE
-Shipment status tracking
-Shipping documents providing
-Product user manual
-Installation instructions and reminders
-LED screen mapping and configuration
-Panel and module repairing
FAQ
Q1. Is GOB technology workable for this panel?
Yes, it is. We can apply GOB technology on the LED modules to make
the panel moisture-proof, waterproof, dust-proof and impact-proof.
So that the fine pitch led panel can be adapted to any harsh
environment.
Q2. What pixel pitch can this panel be compatible with?
This model works with P0.9, P1.25, P1.56, P1.87.
Q3. How do you connect the panel to panel?
The panels connect with each other via screw bolts for fixed
installation. The bolts can adapt a better surface flatness and
make the panel anti-vibration.
Q4. What led brand do you use for this model?
We use NationStar led SMD1212 which provides stable quality and
longer lifespan for this led screen.
Q5. Is it full front service?
Yes, it is. Power supply, receiving card and modules are all taken
out from the front.
