Indoor LED Display Fine Pixel Pitch LED Panel Front Access Fixed
LED Video Wall
LED video wall, Perfect display effect just like big TV.
16:9 / Integrated Control Box / Front Service
FEATURES
Standard resolution, 16:9 ration in panel design
Receiving card and power supply are integrated in one box
LED module and control box can be moved out from front side, easy
to maintenance
Good flatness, no bright and dark lines after splicing
TECHNICAL SPECIFICATIONS
| Product Model: | P1.25 | P1.56 | P1.875 |
| Pixel Pitch: | 1.25 mm | 1.5625 mm | 1.875mm |
| LED Type: | SMD1212 | SMD1212 | SMD1515 |
| Cabinet Dimension: | 600×337.5x58 mm | 600×337.5x58 mm | 600×337.5x58 mm |
| Module Size: | 300x168.75mm | 300x168.75mm | 300x168.75mm |
| Cabinet Weight: | 5.5 kg/sqm | 5.5 kg/sqm | 5.5 kg/sqm |
| Cabinet Material: | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/45 | 1/48 | 1/45 |
| Brightness: | >600 nits | >600 nits | >600 nits |
| Max/Avg Power: | 450/135 W/sqm | 450/135 W/sqm | 450/135 W/sqm |
| Maintenance: | Front service | Front service | Front service |
| Environment: | Indoor Use | Indoor Use | Indoor Use |
| IP Rating: | F: IP30, R: IP45 | F: IP30, R: IP45 | F: IP30, R: IP45 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
DRAWING
600x337.5mm Fine Pixel Pitch LED Cabinet.
PICTURES

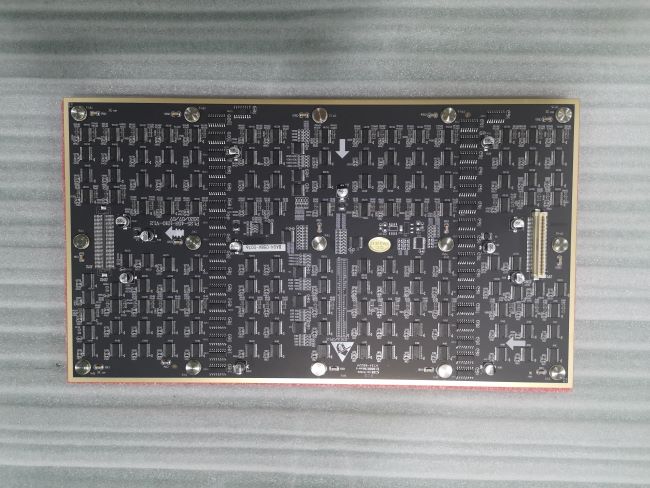

300x168.75 LED module
600x337.5mm LED Cabinet with independent power box
APPLICATION
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are LED manufacturer, OEM & ODM optional, multi-solutions
provider, more than 10 years experience in LED industry! What’s
more, Visual World is a modern factory dedicated to applying
artificial intelligence to the LED industry.
2. Q: How about the warranty?
A: We provide at least 2 years warranty, and some products can be 5
years warranty. Even after the warranty, we can still repair
product for free, you just need to pay for the shipping cost.
3. Q: Can you customize my logo on LED display?
A: Of course, we can print your logo on PCB and LED Cabinet if you
need. Thus you will keep your own brand.
