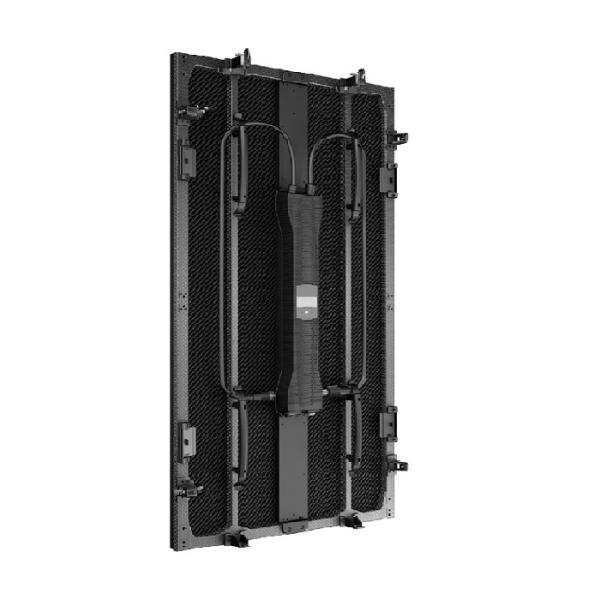

Outdoor P3.9 Rental LED Panel Carbon Fiber for Touring Show
500x1000mm
The CF outdoor series is just tough with elaborately manufacturing,
and by far the lightest LED panel ever made in Visual World
products. It's been a brilliant product for completing a wide range
of rental projects from outdoor to indoor events. The team and
engineers absolutely rave about it and client feedback has been
fantastic.
FEATURES
1. CARBON FIBER MATERIAL
Carbon fiber cabinet forms presentable appearance with high
precision and strength.
2. ONE-MAN HANDLING
The cabinet weighs only 7 kg, less than 15kg per square meter.
Far lighter than normal die-casting led cabinet in the market.
3. OUTDOOR USING
With outdoor special protective treatment make it IP65 and can be
fully used under outdoor condition.
4. LED CURVED WALL
There is curved wall version for the carbon fiber cabinet. It will
equip arc locks, so to make angles between the cabinets.
5. CABLE FREE DESIGN
The handle also takes into account the function of wire storage,
completely solve the trouble of the messy wires.
TECHNICAL SPECIFICATIONS
| Product Model: | CFO-3.9 |
| Pixel Pitch: | 3.9 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 500x1000 mm |
| Module Size: | 250x125 mm |
| Cabinet Weight: | 9 kg |
| Cabinet Material: | Carbon Fiber |
| Driving Type: | 1/16 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/200 W/m2 |
| Maintenance: | Front & Rear service |
| Environment: | Outdoor Use |
| IP Rating: | IP65 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging/Stacking |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
APPLICATION FIELD
State Touring Productions
Outside Festivals
Outdoor Events
Sport Stadium Events
Outdoor Advertising
CASE
By far the lightest product in the market which is less than
15kg/sqm, and can also do both front and back service.
Our CF series carbon fiber led product are the number one choice
for your high end led rental projects that have special requirement
for weight.
If you want more information, please feel free to message us
anytime and anywhere!
FAQ
Q1. Do you have RoHS certification for this product?
Yes, we do. We achieved the RoHS certification before the product
was launched.
Q2. How many radians can these modules be stitched together into a
display screen?
With our custom arc lock, it can support multiple angles (-12 ° ~ +
15°) to make led curved wall.
Q3. What is maximum brightness for outdoor display?
The maximum brightness for outdoor series reaches 5500nits,
carefree for using under strong sunlight.
Q4. Does it have masks to protect the led?
Yes, it does. It has mask on the surface of led module, so as to
protect the led from normal collision.
Q5. What is the resolution for one panel of outdoor P3.9?
The resolution for outdoor P3.9-500x1000mm cabinet is 128*256.
