Indoor Fixed LED Display P3.9 1000/750/500x250mm Slim LED Screen
Video Wall
Front Installation LED Display / 100% Full Front Service Fixed LED Screen / Super slim, 60mm Thickness / Good splicing precision.
FEATURES
Various cabinet size, Flexible Splicing, can do 1000x250mm,
750x250mm, 500x250mm.
Super slim, the thickness is only 60mm.
H:140°,V:140°
Good flatness, no bright and dark lines after splicing.
TECHNICAL SPECIFICATIONS
| Product Model: | P3.9 |
| Pixel Pitch: | 3.9 mm |
| LED Type: | SMD2020 |
| Cabinet Dimension: | 1000/750/500x250x60 mm |
| Module Size: | 250x250mm |
| Cabinet Weight: | 25 kg/sqm |
| Cabinet Material: | Die-casting Aluminum |
| Driving Type: | 1/16 |
| Brightness: | >700 nits |
| Max/Avg Power: | 500/175 W/sqm |
| Maintenance: | Front service |
| Environment: | Indoor Use |
| IP Rating: | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
DRAWING
1000x250mm front service LED Cabinet.
500x250mm front service LED Cabinet.
PICTURES

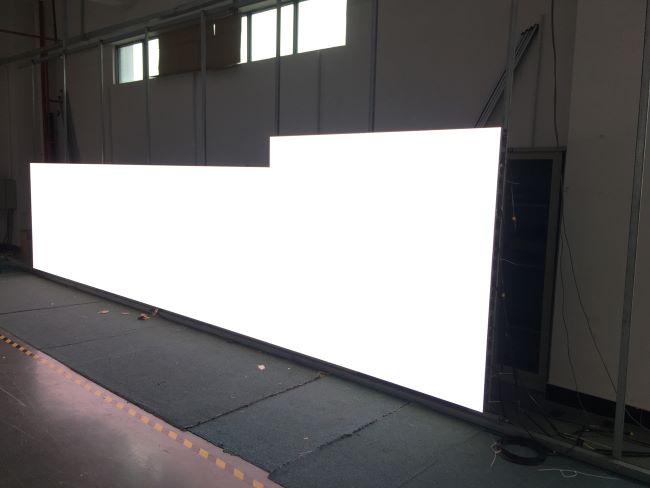

Full white aging for LED Screen.
APPLICATION
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are LED manufacturer, OEM & ODM optional, multi-solutions
provider, more than 10 years experience in LED industry! What’s
more, Visual World is a modern factory dedicated to applying
artificial intelligence to the LED industry.
2. Q: How about the warranty?
A: We provide at least 2 years warranty, and some products can be 5
years warranty. Even after the warranty, we can still repair
product for free, you just need to pay for the shipping cost.
3. Q: Can you customize my logo on LED display?
A: Of course, we can print your logo on PCB and LED Cabinet if you
need. Thus you will keep your own brand.
