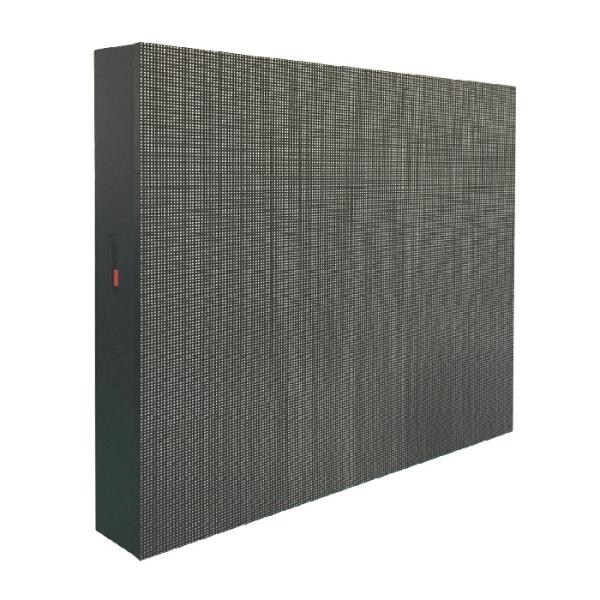

Outdoor P6.94 LED Display High Brightness Roadside LED Signs
1000x1000mm
The most reliable and durable outdoor fixed installation led
displays are available from Visual World. Possessing strong
qualities includes light weight, dust resistance, waterproofness,
high temperature resistance, flame retardancy, automatic power
on/off, and automatic brightness adjustment.
Product Quick Details:
1. Waterproof cabinet
2. Full front service
3. High brightness
4. Wide viewing angles
5. Good heat dissipation
TECHNICAL SPECIFICATIONS
| Product Model: | FS-Outdoor |
| Pixel Pitch: | 6.94 mm |
| LED Type: | SMD3535 |
| Cabinet Dimension: | 1000x1000 mm |
| Cabinet Resolution: | 144*144 pixels |
| Module Size: | 250x250 mm |
| Module Resolution: | 36*36 pixels |
| Module Qty/cabinet: | 4x4=16pcs |
| Pixel Density: | 20736 dots/sqm |
| Cabinet Weight: | 30 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 6000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front & Rear service |
| Environment: | Outdoor Use |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Stacking |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
FEATURES
The standards for quality and installation are substantially higher
for outdoor all-weather installations than for indoor led displays.
Visual World FS-outdoor series led displays are made to meet
different outdoor requirement, which is also the most common and
widely used outdoor display screen.
1. WATERPROOF
Durable, waterproof, fast heat dissipation aluminum cabinet with
IP65 protection level for outdoor using.
2. FRONT SERVICE
The cabinet and module have compatible front locks design which
allows technicians to do front maintenance effortless.
3. HIGH BRIGHTNESS
Customized module PCB and designated power supply make it up to
6000nits brightness.
4. WIDE VIEWING ANGLES
Wide viewing angles horizontal 140°, vertical 140° allows audience
to watch the screen clearly from distances.
5. GOOD HEAT DISSIPATION
Built-in fans and curved holes enable the led cabinet to be
waterproof and fast heat dissipation at the same time.
APPLICATION FIELD
Wharf Mall
Train station
Theme Park
Outdoor activity area
Building exterior wall
creative modeling
Park entrance
ACCESSORIES
Novastar led controller
Spare led module
Power supply
Receiving card
Main signal cable
Main power cable
Metal connector
Screws
Module power cable
Flat cable
Module mask
Module shell
Module lock
Front service tool
Waterproof rubber ring
Waterproof cable connector
Light sensor
Optical fiber transceiver
Optical fiber cable
CASE
MAINTENANCE TOOLS
Front service tool
Heat gun
Soldering station
Soldering paste
Tin wire
Glue
Tweezers
Magnifier
Multimeter
Brightness meter
Mask roller
FAQ
Q1. Who is Visual World?
Visual World is a modern factory dedicated to applying artificial
intelligence to the LED industry. In terms of product selection, we
use big data to analyze the traditional LED display industry based
on AI technology, and select the most popular LED products in the
market for R&D and promotion.
Visual World team has been deeply involved in the LED display
industry for more than twenty years, and has a deep understanding
of industry trends and products, which enables us to provide
customers with customized products with high quality and better
services.
Q2. Why choose Visual World?
-More than 20,000 square meters of industrial area
-Complete production equipment, including SMT machines, temperature
furnaces, LED dead pixel detectors, screw fixing machines, packing
machines, aging racks, assembly lines, and various test equipment,
including test equipment for salt spray, temperature impact,
vibration, and waterproofness.
-Senior technical and sales teams with over 20 years of industry
experience
-Rich project experiences with thousands of instances around the
globe
-Product certifications include CE, ROHS, EMC, LVD, ETL, and FCC
Online technical assistance is available around-the-clock
Q3. What led brand do you use for this model?
We use high quality SMD LED like nationstar who provides stable
quality and longer lifespan for this led screen.
Q4. Will it work under raining condition?
Yes, the cabinet is IP65 can it can work outside under different
weather situations.
Q5. What is the delivery time for 200sqm?
The delivery time will be 20 days after order confirmation. The
time may vary according to orders status.
