P8 Outdoor LED Display Front Access Iron Cabinet for Building
Facade 1280x960mm
The most reliable and durable outdoor fixed installation led
displays are available from Visual World. Possessing strong
qualities includes light weight, dust resistance, waterproofness,
high temperature resistance, flame retardancy, automatic power
on/off, and automatic brightness adjustment.
Product Quick Details:
1. Waterproof cabinet
2. Rear service
3. High-end cabinet housing
4. Wide viewing angles
5. Good heat dissipation
TECHNICAL SPECIFICATIONS
| Product Model: | FS-Outdoor |
| Pixel Pitch: | 8 mm |
| LED Type: | SMD3535 |
| Cabinet Dimension: | 1280x960 mm |
| Cabinet Resolution: | 160*120 pixels |
| Module Size: | 320x160 mm |
| Module Resolution: | 40*20 pixels |
| Module Qty/cabinet: | 4x6=24pcs |
| Pixel Density: | 15625 dots/sqm |
| Cabinet Weight: | 50 kg |
| Cabinet Material: | Iron |
| Cabinet Color: | Black |
| Driving Type: | 1/6 |
| Brightness: | 6000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Rear service |
| Environment: | Outdoor Use |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Stacking |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
FEATURES
The standards for quality and installation are substantially higher
for outdoor all-weather installations than for indoor led displays.
Visual World FS-outdoor series led displays are made to meet
different outdoor requirements, which is also the most common and
widely used outdoor display screen.
1. WATERPROOF
Durable iron cabinet with back door, IP65 protection level for
outdoor using.

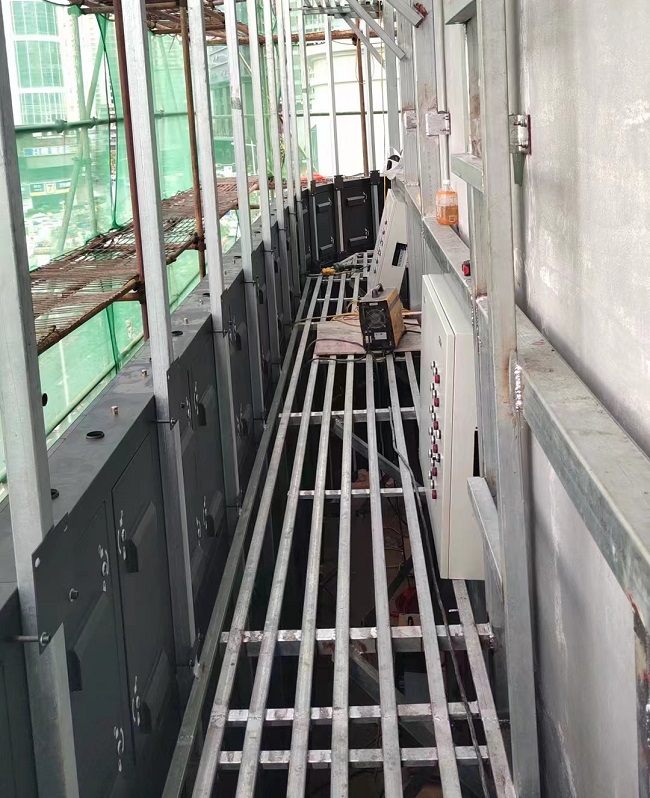

2. REAR SERVICE
Module, power supply and receiving card are reachable from
backdoor, suitable for outdoor display projects with maintenance
channels.
3. HIGH-END CABINET HOUSING
High quality cabinet frame housing, iron frame ensures durability
and smooth led screen flatness.
4. WIDE VIEWING ANGLES
Wide viewing angles horizontal 140°, vertical 140° allows audience
to watch the screen clearly from distances.
5. GOOD HEAT DISSIPATION
Built-in fans and curved holes at the back door speed up the heat
dissipation, extend the life time of the cabinet.
APPLICATION FIELD
Amusement parks
Highway billboard
Swimming pool
Building entrance
outdoor advertising
Roadside poster
Sport stadium
Playing field
ACCESSORIES
Novastar led controller
Spare led module
Power supply
Receiving card
Main signal cable
Main power cable
Metal connector
Screws
Module power cable
Flat cable
Module mask
Module shell
Module lock
Front service tool
Waterproof rubber ring
Waterproof cable connector
Light sensor
LEDs and ICs
Optical fiber transceiver
Optical fiber cable
CASE
FAQ
Q1. Who is Visual World?
Visual World is a modern factory dedicated to applying artificial
intelligence to the LED industry. In terms of product selection, we
use big data to analyze the traditional LED display industry based
on AI technology, and select the most popular LED products in the
market for R&D and promotion.
Visual World team has been deeply involved in the LED display
industry for more than twenty years, and has a deep understanding
of industry trends and products, which enables us to provide
customers with customized products with high quality and better
services.
Q2. Why choose Visual World?
-More than 20,000 square meters of industrial area
-Complete production equipment, including SMT machines, temperature
furnaces, LED dead pixel detectors, screw fixing machines, packing
machines, aging racks, assembly lines, and various test equipment,
including test equipment for salt spray, temperature impact,
vibration, and waterproofness.
-Senior technical and sales teams with over 20 years of industry
experience
-Rich project experiences with thousands of instances around the
globe
-Product certifications include CE, ROHS, EMC, LVD, ETL, and FCC
Online technical assistance is available around-the-clock
Q3. What led brand do you use for this model?
We use high quality SMD LED like Nationstar which has stable
quality and longer lifespan for this led screen.
Q4. It is CE certificated?
Yes, we have CE, RoHS, EMC-A certificated for all the outdoor led
display products.
Q5. You provide the structures on site?
Yes, we do. But we didn’t recommend to product it in our factory,
since the delivery fee for structures will be extremely high. We
can make the structure drawings for you, and suggest to produce the
structure and install it on your side.
