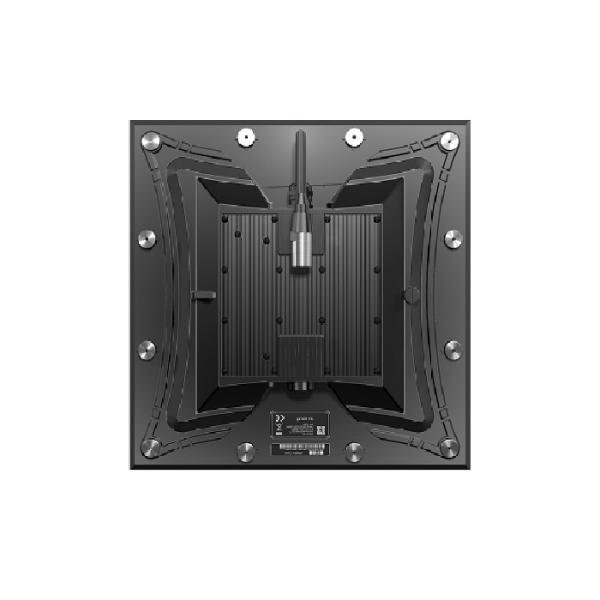

Indoor P2.85 Fixed LED Display Smart Module for Corporate Showroom
320x320mm
SMART BLOCK series is a versatile LED product conceptualized to aid
designers in creating inventive displays. Its adaptable design,
based on 320x320mm LED modules, translates into various frame
dimensions which can be combined like building blocks, making room
for artistic, immersive displays that are out of the ordinary.
Product Quick Details
1. Durable module frame
2. Front service
3. Modular size 320x320mm
4. Plug and play
5. Power & Signal 2 in 1 cable
TECHNICAL SPECIFICATIONS
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 2.85 mm |
| LED Type: | SMD1515 |
| Pixel Density: | 122500 dots/sqm |
| Cabinet Dimension: | 320x320mm |
| Module Resolution: | 112*112 |
| Module Weight: | 1.5 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/16 |
| Brightness: | 800-1000 nits |
| Max/Avg Power: | 600/210 W/m2 |
| Maintenance: | Front service |
| Environment: | Indoor Use |
| IP Rating: | IP30 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:140°；V:160° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
FEATURES
Visual World SMART BLOCK series integrated led module is customized
for indoor/outdoor use. High precision and waterproof modules,
magnetic front access, 45°module edges to make concave/convex video wall, synchronous
transmission of power & signal, less messy cables, good heat
dissipation. All components are produced and assembled according to
standardized processes, in order to ensure the stable quality and excellent visual performance.
1. DURABLE MODULE FRAME
Diecasting aluminum panel makes led video wall flat and smooth, so
to present better advertising video content.
2. FRONT SERVICE
Strong magnets to fullfil front maintenance with safety. Module
safety rope is optional to tighten the connection for maintenance
at high altitude.
3. MODULAR SIZE
Power supply, receiving card and hub are integrated into the
320x320mm module, which makes the module can work as a single
panel.
4. 45° MODULE EDGES
The edges of the module are 45° beveled edge treatment. Which
allows the module to build 90°straight corner, inner or outer
curved video wall.
5. POWER&SIGNAL 2-in-1 CABLE
Customized 2 in 1 cable and waterproof connectors ensure
simultaneous transmission of the power and signal between
controller and led screen.
APPLICATION FIELD
Indoor fixed
Company conference room
LED cube
L shaped led display
Corporate history wall
CASE
LED Display Production Equipment
SMD equipment:
-PCB feeder
-Solder Paste Printer
-SMT machine
-Reflow soldering
-Braiding machine
-Vertical SMD machine
-Tin furnace welding
-Production line
-Paint sprayer
-Glue applicator
-Drying rack
-Waterproof tester
-Intelligent temperature controller
FAQ
Q1. What accessories do you have for this module?
It equips
320x320mm die-casting aluminum frame
Positioning screw
Expansion bolt
Lifting ring
Security rope
Q2. How do you fix the module frame?
The frame connects to structure by fixing metal plates and bolts
just like normal fixed installation. There are also hexagon screws
for connecting frames to frames.
Q3. What system do you use for this panel?
The smart module works with NovaStar video processor.
Q4. What is warranty for this led panel?
The default warranty is 2 years with Nationstar leds.
Q5. Do you have certifications?
Yes, we do have CE, ROHS, LVD, ETL, FCC certificates for this
product.
