Cylinder Soft Flexible LED Display Screen , Flex LED Module
Bendable
DESCRIPTION:
Flexible LED display screen / 240x120mm flexible LED module / Soft
LED panel / LED Cylinder, LED column
FEATURES:
Soft PCB design, can be curved, flexible installation
Curved angle from 110° to 180°, inner and outer curved
Can be made for circle, column, wave...etc shapes
Fixed by magnets, easy and quick installation, front access and
maintenance
TECHNICAL SPECIFICATIONS:
| Product Model: | P1.25 | P1.579 | P1.667 | P1.875 |
| Pixel Pitch: | 1.25 mm | 1.579 mm | 1.667 mm | 1.875 mm |
| LED Type: | SMD1010 | SMD1212 | SMD1212 | SMD1515 |
| Module Resolution: | 192*96 pixels | 152*76 pixels | 144*72 pixels | 128*64 pixels |
| Module Size: | 240*120mm | 240*120mm | 240*120mm | 240*120mm |
| Module Weight: | 0.215 kg | 0.203 kg | 0.195 kg | 0.216 kg |
| Cabinet Material: | Iron wiht painting | Iron wiht painting | Iron wiht painting | Iron wiht painting |
| Driving Type: | 1/48 | 1/38 | 1/36 | 1/32 |
| Brightness: | 600-1000 nits | 600-1000 nits | 600-1000 nits | 600-1000 nits |
| Max Power: | 19 /pcs | 19 w/pcs | 19 w/pcs | 19 w/pcs |
| Maintenance: | Front & Rear service | Front & Rear service | Front & Rear service | Front & Rear service |
| Environment: | Indoor Use | Indoor Use | Indoor Use | Indoor Use |
| IP Rating: | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
PICTURE:

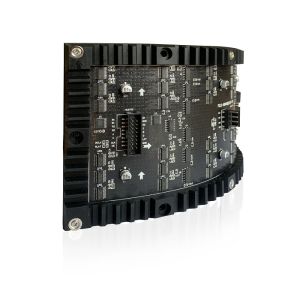

Flexible LED display screen Installation,curved LED cabinet
APPLICATION:
FAQ:
Q1: Are you a manufacturer or trading company?
A1: We are LED manufacturer, OEM & ODM optional, multi-solutions
provider, more than 10 years experience in LED industry! What’s
more, Visual World is a modern factory dedicated to applying
artificial intelligence to the LED industry.
Q2: How about the warranty?
A2: We provide at least 2 years warranty, and some products can be
5 years warranty. Even after the warranty, we can still repair
product for free, you just need to pay for the shipping cost.
Q3: Can you customize my logo on LED display?
A3: Of course, we can print your logo on PCB and LED Cabinet if you
need. Thus you will keep your own brand.
