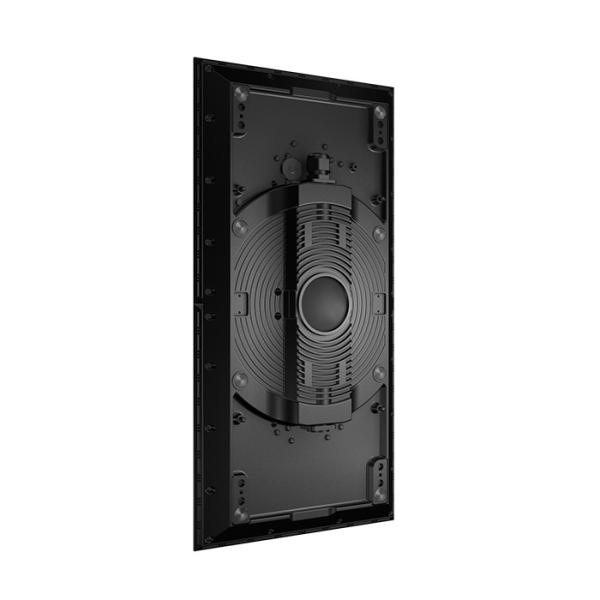

250x500mm Outdoor LED Display Module Smart With Die Casting
Aluminum Material
DESCRIPTION:
SMART BLOCK-PLUS series display:flexible installa on, high protec
on, light weight,front servicing, being able to have quick
assembling methods like hanging method, standing method, laying
against wall; suppor ng flat and curve surface. It is perfect to fit
show window and outdoor.
FEATURES:
only 3.5kg/pcs, save shipping cost.
Integrate power supply, receiving card and module into one cabinet.
Strong Magnetic Suction, full front service
45° Beveledge design, Cube, Square, circle shape are possible
TECHNICAL SPECIFICATIONS:
| Product Model: | P2.97 | P3.91 |
| Pixel Pitch: | 2.97 mm | 3.91 mm |
| LED Type: | SMD1415 | SMD1921 |
| Cabinet Dimension: | 250×500 mm | 320×320x37 mm |
| Module Size: | 250x250 mm | 250x250 mm |
| Cabinet Weight: | 3.5 kg/pcs | 3.5 kg/pcs |
| Cabinet Material: | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/21 | 1/16 |
| Brightness: | >5000 nits | >5000 nits |
| Max/Avg Power: | 97w/pcs | 97w/pcs |
| Maintenance: | Front service | Front service |
| Environment: | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP66, R: IP66 | F: IP66, R: IP66 |
| Refresh Rate: | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:140° | H:140°；V:140° |
| Operational Temp: | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH |
PICTURES:

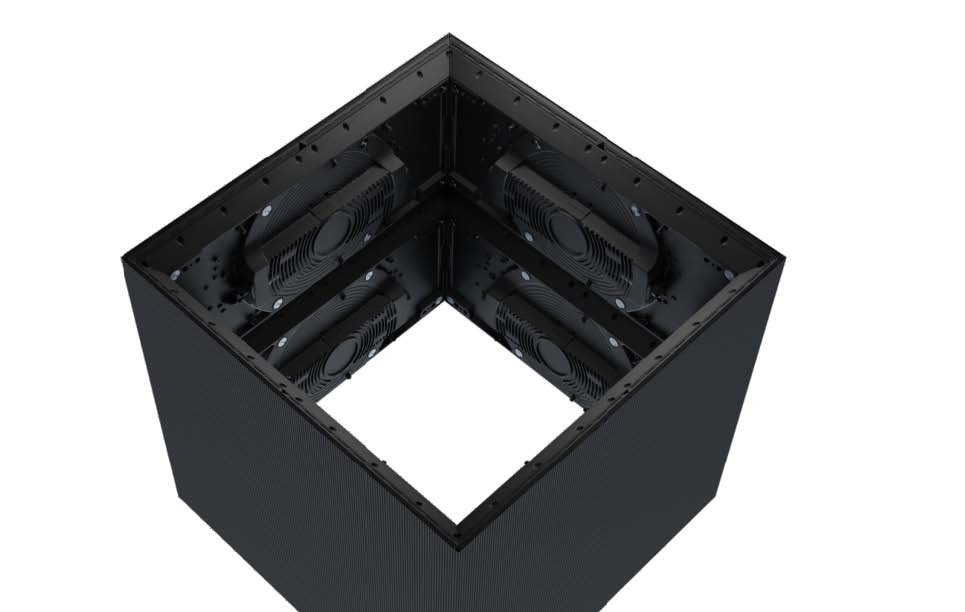

500x500mm Front maintenance LED Cube.

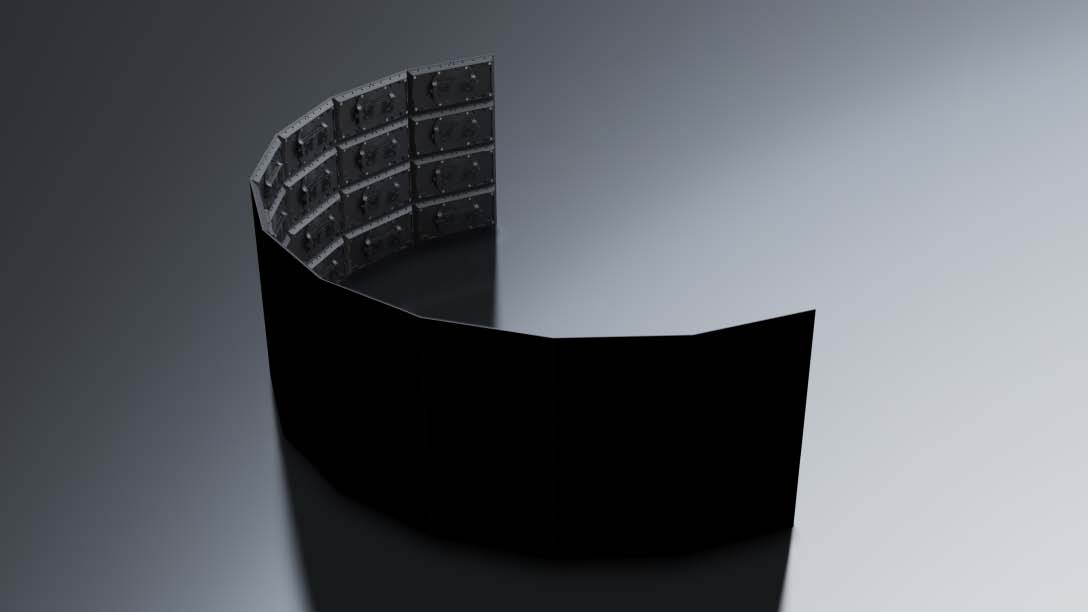

250x500 Smart LED module for curved LED screen

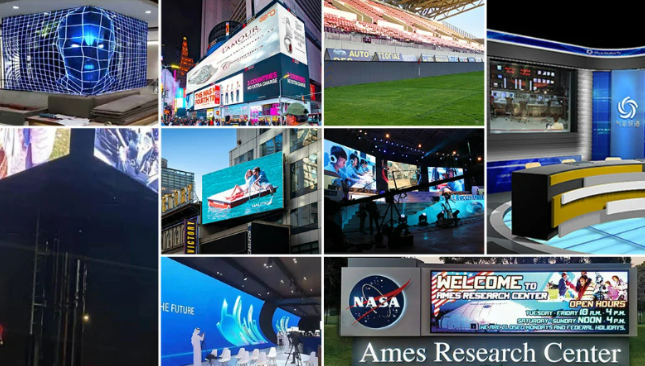

APPLICATION:
Looking for a led module for individual outdoor use? Our SMART
BLOCK PLUS integrated led module is the highly recommended to your
outdoor video wall projects. Special 45° edges design allows this
panel to build led screen with different shape or display area. If
you want to learn more about this product, please feel free to
contact!
FAQ:
Q1: Are you a manufacturer or trading company?
A1: We are LED manufacturer, OEM & ODM optional, multi-solutions
provider, more than 10 years experience in LED industry! What’s
more, Visual World is a modern factory dedicated to applying
artificial intelligence to the LED industry.
Q2: How about the warranty?
A2: We provide at least 2 years warranty, and some products can be
5 years warranty. Even after the warranty, we can still repair
product for free, you just need to pay for the shipping cost.
Q3: Can you customize my logo on LED display?
A3: Of course, we can print your logo on PCB and LED Cabinet if you
need. Thus you will keep your own brand.
