Outdoor P4 Fixed LED Display Smart Module for LED Showroom
320x320mm
A flexible LED product called the SMART BLOCK series was created to
help designers make creative displays. Its flexible architecture,
which is built on 320x320mm LED modules, translates into a variety
of frame dimensions that may be assembled like building bricks to
create unconventional, artistic, immersive displays.
Product Quick Details
1. Diecasting aluminum
2. Front maintenance
3. Power box integration
4. Concave/convex wall
5. 2-in-1 transmission cable
TECHNICAL SPECIFICATIONS
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 4 mm |
| LED Type: | SMD1921 |
| Pixel Density: | 62500 dots/sqm |
| Cabinet Dimension: | 320x320mm |
| Module Resolution: | 80*80 |
| Module Weight: | 1.54 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/16 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
FEATURES
Visual World SMART BLOCK series integrated led module is customized
for indoor/outdoor use. High precision and waterproof modules,
magnetic front access, 45°module edges to make concave/convex
screen, synchronous transmission of power & signal, less messy
cables, good heat dissipation. High brightness and excellent visual
performance.

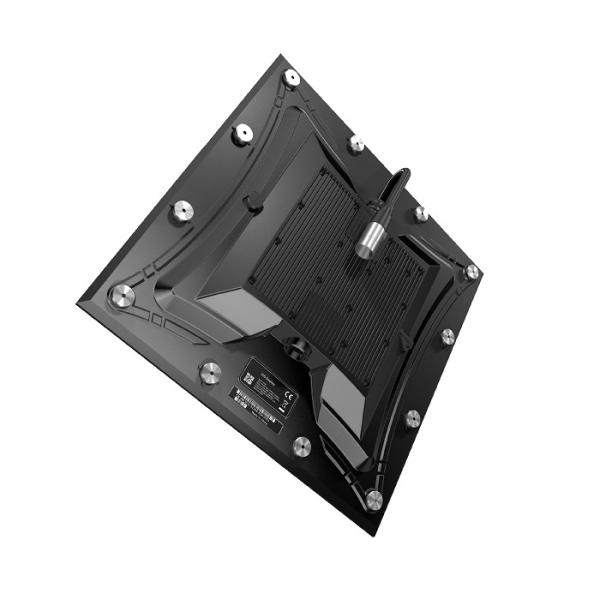

1. DIECASTING ALUMINUM
CNC diecasting aluminum frame, strong and durable. Heat sink design
at the power box speeds up the heat dissipation.
2. FRONT MAINTENANCE
Magnetic led modules strongly connect to the module frame. Safety
rope is optional to tighten the connection.
3. POWER BOX INTEGRATION
The power supply, receiving card and hub are integrated into the
320x320mm module, which makes the module can be used as a single
panel.
4. CONCURVED VIDEO WALL
The edges of the module are 45° beveled edge treatment. Which
allows the module to build 90°straight corner, concave/convex video
wall.
5. 2-in-1 TRANSMISSION CABLE
Customized 2 in 1 cable and waterproof connectors ensure
simultaneous transmission of the power and signal.
APPLICATION FIELD
Exhibition booth
Stage showcase
Building fixed installation
Outlets storefront
Arc video wall
CASE
SMART BLOCK Installation Step (Hoisting)
1- Assembling according to the arrow direction on the frames.
2- Use the hexagon screws to fix 320mm x 320mm frames.
3- After assembling the frames, lock the lifting ring and hoist it.
4- After hoisting the frames, assemble modules and then connect
cables between modules (please lock the security rope first to
avoid module droping)
Front maintenance:
Hold the air vacuum tool switch for 2-3 seconds. Start and place
the tool on the module, then pull the tool, the module will be
removed together.
Replace the module and install it in the frame, just place the
module near the frame, it will connect automatically by magnets.
FAQ
Q1. What accessories do you have for this module?
It equips a 320x320mm die-casting aluminum frame which also has
magnets on it. The frames are for fixed installation. LED modules
just connect to the frame after getting the frames settled.
Q2. Can the module work without frames?
Yes, it can. The modules are magnetic, they can work with
customized metal cabinets to make different LED shapes.
Q3. What system do you use for this panel?
The smart module only works with NovaStar video wall.
Q4. Is the cable connection flexible, or fixed direction?
The cable connection is flexible, you can choose the panel
connecting left and right, up and down direction according to the
project requirement.
Q5. Is the product certificated?
Yes, we have CE, ROHS, LVD, ETL, FCC certificates for this product.
