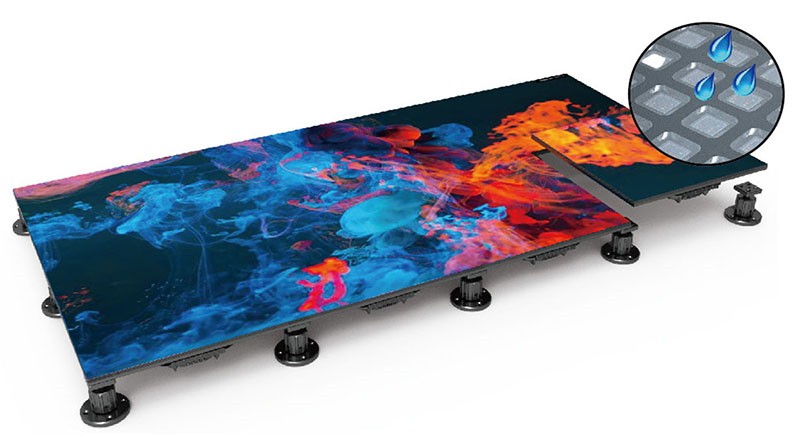

Indoor & outdoor P2.6 Interactive LED Floor Display for Fixed and
Rental 500x500mm
F-DANCER series LED floor display is specially designed for floor
using on shopping malls, interests and theme parks with high load
bearing and durability. Interactive games or effects can be
customized according to the actual applications.
Product Quick Details:
1,Interactive led panel
2,High load bearing, 2.5T/sqm
3,Fast and easy installation with rail bar
FEATURES
1. INTERACTIVE FLOOR
Smart interactive sensor design on module can make the led video
floor no longer a simple led screen, but a high-tech product that
can interact with people.
2. STRONG DURABILITY
LED module is IP65 waterproof and skidproof protection level, both
work under indoor/outdoor application scene.
3. HIGH LOAD BEARING
Multiple stiffeners on cabinet and up to 2.5T/sqm load bearing
enable people to stand on and car to drive over this led panel.
4. GOOD HEAT DISSIPATION
Heat sink and aluminum cabinet design improve the heat conduction,
thus enable the led panel to better maintain the function during
working.
5. TWO INSTALLATION TYPE
It can fix on the rail bars which is new way to do fast
installation, or use adjustable feet like the normal way.
TECHNICAL SPECIFICATIONS
| Product Model: | P2.6 |
| Pixel Pitch: | 2.6 mm |
| LED Type: | SMD1415, 3 in 1 |
| Cabinet Dimension: | 500x500 mm |
| Module Size: | 250x250 mm |
| Cabinet Weight: | 10 kg |
| Cabinet Material: | Die-casting aluminum |
| Driving Type: | 1/24 |
| Brightness: | 2000 -4000 nits |
| Max/Avg Power: | 600/210 W/m2 |
| Maintenance: | Rear service |
| Environment: | Indoor/Outdoor Use |
| IP Rating: | front:IP65, rear:IP43 |
| Refresh Rate: | 1920 Hz |
| Installation Type: | Floor fix/rental |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:120°；V:120° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
APPLICATION FIELD
Floor video wall
Shopping mall
Museum
Sport game stadium
Theme parks
CASE
Looking for an interactive led floor display with owned model? Our
F-DANCER series led floor panels are specially developed to meet
these interactive led floor project. Panels are fixed on the rail
bars which are made for easy installation, workers can do the
installation effortless under our instruction guide and reminders.
If you want to know more about this product, please don’t hesitate
to contact!
AFTER-SALES SERVICE
-Shipment status tracking
-Shipping documents providing
-Product user manual
-Installation instructions and reminders
-LED screen mapping and configuration
-Panel and module repairing
FAQ
Q1. What is the actual height from the ground to the screen, with
rail bar installation?
The height for rail bar+cabinet is 95mm, the maximum thickness of
cabinet is 76.3mm.
Q2. Can it play interactive games when people standing on the
screen?
Yes, it can. We have dozens of games and effects for people to
choose.
Q3. Do you customize video content?
Yes, we do. The content for interactive led floor needs to be
remade.
Q4. What control system do you use?
Our owned-developed computer software, easy to upload contents and
control the screen.
Q5. Can vehicle park on the led floor display?
Yes, it can. Our F-DANCER led floor display can bear 2T/sqm. SUV
can drive over or park on it.
