Quartz Series Indoor Outdoor 500×1000mm Rental LED Display for
Rental, Fixed and Floor
Product Description:

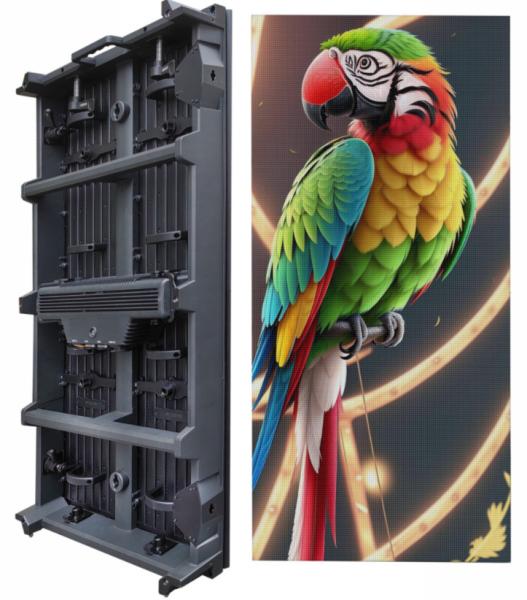

Only the best is good enough. This rental led product 500x1000mm
offers a durable yet lightweight LED solution that provides quick
installation through its intuitive smart-lock system. This is ideal
for building large LED walls and ceilings fast and efficiently.
Visual World die-casting aluminum rental led display product, high
precision cabinet, rear access, waterproof modules, can equip with
safety ropes to install on the ceiling. Easy installation, high
brightness, 4500:1 contrast and good video performance, excellent
choice for rental events.
Features:
- Quick Installation: Fast lock and cabinet magnet design for quick
and easy installation.
- Front & Rear service: LED module could be front and rear
maintenance, independent
- power box design.
- Climbing function: Easy climbing on the back of the screen, no need
for extra ladders.
- High contrast: 4500:1 contrast ratio.
- Protect corner and anti-knock design: Better to protect LED lamp
from knock.
- Three use: Could be used for rental, fixed and floor.
- Radian lock design : Could do convex and concave curved screen.
Technical Parameters:
| Technical Parameters | Quartz Series Rental LED Display |
| Product Model: | QZI2.97 | QZI3.9 | QZO3.9 | QZO4.8 |
| Pixel Pitch: | 2.97 mm | 3.9 mm | 3.9 mm | 4.8 mm |
| LED Type: | SMD2121 | SMD1921 | SMD1921 | SMD2121 |
| Cabinet Dimension: | 500×1000mm | 500×1000mm | 500×1000mm | 500×1000mm |
| Module Size: | 250x500 mm | 250x500 mm | 250x500 mm | 250x500 mm |
| Cabinet Weight: | 14.5 kg | 14.5 kg/pcs | 14.5 kg/pcs | 14.5 kg/pcs |
| Cabinet Material: | Die-coasting AL | Die-casting AL | Die-casting AL | Die-casting AL |
| Brightness: | 1000nits | 1000 nits | 6000 nits | 6000 nits |
| Max/Avg Power: | 560/224W/m2 | 560/224W/m2 | 780/321 W/m2 | 780/321W/m2 |
| Maintenance: | Front/Rear service | Front & Rear service | Front & Rear service | Front & Rear service |
| Environment: | Indoor Use | Indoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | IP30 | IP30 | IP65 | IP65 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Floor Standing/ Hanging/Stacking | Floor Standing/ Hanging/Stacking | Floor Standing/ Hanging/Stacking | Floor Standing/ Hanging/Stacking |
| Gray Scale: | 14 bits | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Applications:
Widely used in stage rental, song and dance activities, various
conferences, exhibitions, stadiums, theaters, auditoriums, lecture
halls, multi-function halls, conference rooms, performance halls,
disco bars, nightclubs, high-end entertainment disco, TV Spring
Festival Gala, important cultural activities in various provinces
and cities and other places.
Testing:

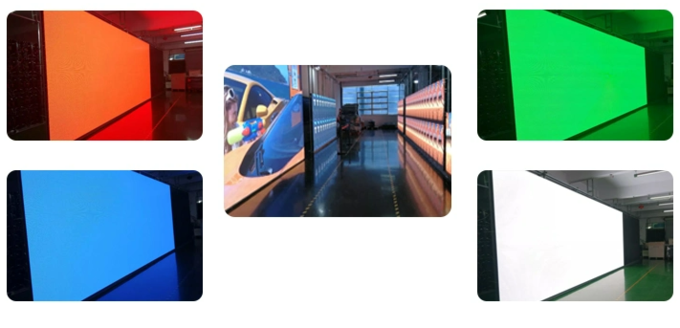

Electronic screen aging test process
1)check: check the above box module installation is all correct,
check whether there is a short circuit, mixed connection, check
whether the module installation is smooth, whether the joint is
neat, check whether the appearance is intact, whether there are
bumps and scratches
2)lighting aging: use online control system lighting, test time
continuous lighting for more than 72 hours
3)Indicator test: After the aging test is correct, please ask the
quality inspection team to carry out parameter indicator test
FAQ:
Q1: Are you a manufacturer or trading company?
A1: We are LED manufacturer, OEM & ODM optional, multi-solutions
provider, more than 10 years experience in LED industry! What’s
more, Visual World is a modern factory dedicated to applying
artificial intelligence to the LED industry.
Q2: Can it work with NovaStar system controller?
A2: Yes, it can. NovaStar controller is compatible with this
product.
Q3: What is your biggest project for this product?
A3: We have done a 12,000sqm led mesh project for a building façade
in Guangzhou China.
