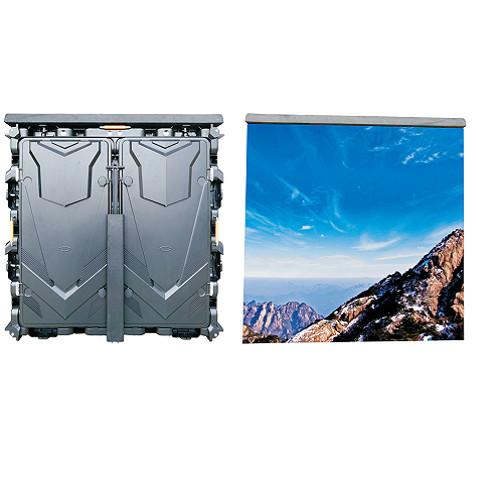

P2.5 SMD1415 Outdoor Fixed LED Display with High Brightness Die
Casting Aluminum
DESCRIPTION:
P2.5 SMD1415 Outdoor Fixed LED Display makes the LED display vivid and smooth pictures. Our best solution
with high refresh rate and high grey level can achieve the best
visual performance. Almost all companies can benefit from buying
LED screens. Attracting new customers is the key, especially in a
noisy and crowded environment. LED billboards are the perfect way
to put your name in the minds of potential consumers, helping to
display products,services, and any information related to your
company.
FEATURES:
- Uniform color and high contrast ratio,bringing up fresh and
natureal image ;
Low power consumption and fine heat release ;
Super wide viewing angle increasing its value by covering more
audience ;
No deformation under sunlight by the use of anti-UV modules ;
High protection grade of IP65 achieved by patented mask design with
waterproof and dustproof function ;
Safe and reliable operation ensured by stable signal and power
supply .
Specifications:
| Pixel Pitch: |
2.5mm
| 4 mm | 5.33 mm | 6.67 mm | 8 mm | 10 mm |
| LED Type: | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960×960×137mm | 960×960x137 mm | 960×960x137 mm | 960×960x137 mm | 960×960x137 mm | 960×960x137 mm |
| Module Size: | 320×160mm | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm |
| Cabinet Weight: | 28 kg | 28 kg | 28 kg | 28 kg | 28 kg | 28 kg |
| Cabinet Material: | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium |
| Driving Type: | 1/16 | 1/10 | 1/7&8 | 1/6 | 1/5 | 1/2 |
| Brightness: | 6000 nits | 6000 nits | 5000 nits | 5500 nits | 5500 nits | 5500 nits |
| Max/Avg Power: | 880/308 W/m2 | 850/298 W/m2 | 750/263 W/m2 | 800/280 W/m2 | 700/245 W/m2 | 800/270 W/m2 |
| Maintenance: | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
APPLICATION:
Retail store, shopping mall, stadium, square, stage and so on.
Every outdoor scene you can ever imagine, P2.5 Outdoor Fixed LED
Display is absolutely suitable.
SERVICE&SUPPORT :
Pre-sale service:
Inquiries will be replied within 24 hours. Market research and
forecast for customer. Provide unique and professional solutions
based on customer's requirement. Data sheet and samples offered.
Other required services such as special packing design, factory
visiting and so on.
In-sale service:
Tracking producing procedures all the time. Provide photos and
videos as per customer's requirement during production. Free spare
parts provided.
After-sale service:
Complaint respond period not exceed 24 hours; maintenance guidance
and problem solution supplied in 48 hours. Warranty: 24 months.
Free technician training. Full set of documents free of charge,
which including installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
FAQ:
Q1:Can we custom LED display screen size?
A1: With extensive experience in a diverse range of markets and
applications, we ensure the development of a unique LED video wall,
configured LED video wall, or a custom display that matches your
exact requirements. We provide custom LED display, custom shape LED
screens of any sizes including giant and slim LED display and so
much more. The bigger size is with the better effect . So just feel
free to contact us , we could provide you the reasonable and
suitable solution for your project.
Q2:How to install it after received?
A2: We will offer you the drawing to guide you for installation,
even send our engineer toyou for help if needed.
Q3: What's the weight of one cabinet?
A3: One standard 960x960mm OFR cabinet is 28kg.
Q4: Why do you recommend to use OFR die casting aluminum cabinet?
A4: Because OFR die casting aluminum cabinet is light and thin, the
screen will looks beautiful, meantime easily for installation. And
if you need to use the screen for rental in the future, OFR can do
that, too.
Q5: Are you trading company or manufacturer?
A5: VISUAL WORLD is a professional LED display manufacturer, having
been enrolled in led display industry with professional
R&D team and skilled QC team for 10 years.
