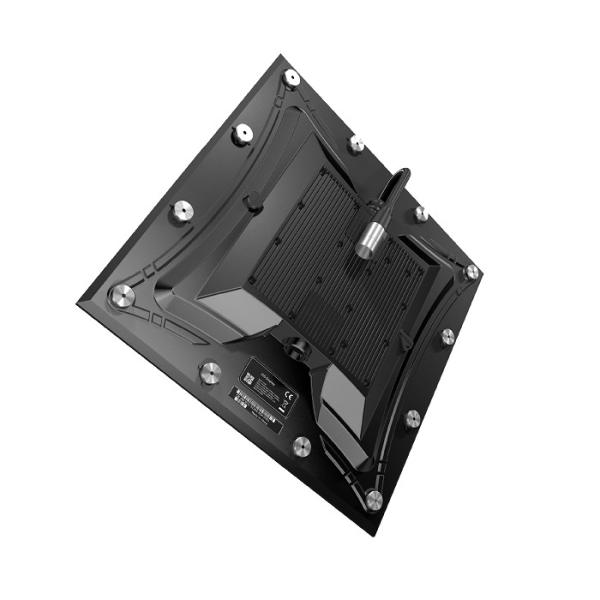

P2.85 Outdoor Fixed LED Screen Smart Module For LED Showroom
320x320mm
Integrated power supply, receiving card and module into one
cabinet.
SMD up to 6500nits. Perfect for outdoor using. Brightness will
automatically adjust according to the sunlight situation.
Product Quick Details
1. Diecasting aluminum
2. Front maintenance
3. Power box integration
4. Concave/convex wall
5. 2-in-1 transmission cable
TECHNICAL SPECIFICATIONS
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 2.85 mm |
| LED Type: | SMD1921 |
| Pixel Density: | 62500 dots/sqm |
| Cabinet Size: | 320x320mm |
| Module Resolution: | 80*80 |
| Module Weight: | 1.54 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/16 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
FEATURES
Visual World SMART BLOCK series integrated led module is customized for indoor/outdoor use. High
precision and waterproof modules, magnetic front access, 45°module
edges to make concave/convex screen, synchronous transmission of
power & signal, less messy cables, good heat dissipation. High
brightness and excellent visual performance.
1. DIECASTING ALUMINUM
CNC diecasting aluminum frame, strong and durable. Heat sink design
at the power box speeds up the heat dissipation.
2. FRONT MAINTENANCE
Magnetic led modules strongly connect to the module frame. Safety
rope is optional to tighten the connection.
3. POWER BOX INTEGRATION
The power supply, receiving card and hub are integrated into the
320x320mm module, which makes the module can be used as a single
panel.
4. CONCURVED VIDEO WALL
The edges of the module are 45° beveled edge treatment. Which
allows the module to build 90°straight corner, concave/convex video
wall.

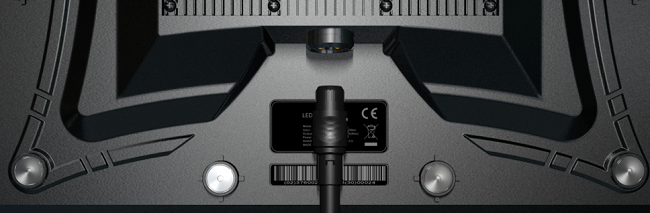

5. 2-in-1 TRANSMISSION CABLE
Customized 2 in 1 cable and waterproof connectors ensure
simultaneous transmission of the power and signal.
INSTALLATION METHOD
APPLICATION FIELD
Exhibition booth
Stage showcase
Building fixed installation
Outlets storefront
Arc video wall
SMART BLOCK Installation Step (Hoisting)
1- Assembling according to the arrow direction on the frames.
2- Use the hexagon screws to fix 320mm x 320mm frames.
3- After assembling the frames, lock the lifting ring and hoist it.
4- After hoisting the frames, assemble modules and then connect
cables between modules (please lock the security rope first to
avoid module droping)
Front maintenance:
Hold the air vacuum tool switch for 2-3 seconds. Start and place
the tool on the module, then pull the tool, the module will be
removed together.
Replace the module and install it in the frame, just place the
module near the frame, it will connect automatically by magnets.
FAQ
Q1:I want to have a sample, can you provide?
A1:Yes, we can offer sample for you testing at sample-price which
can be refunded after you mass order.
Q2:I bought this LED display how to use and install it?
A2:Professional training will be offered by our technology engineer
till you master it.
Q3: Why purchase from VISUAL WORLD?
A3: Stable and reliable quality, efficient and professional
customer service, competitive factory price, fast delivery time.
Q4:Can your workers go abroad for installation ?
A4:Yes, we send our engineer to abroad to install and commison the
LED display .
