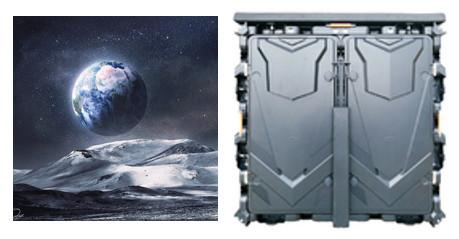

P10 5500nits Outdoor Fixed LED Display Screen with 960x960mm Die
Casting Cabinet
Product Description:
Outdoor P10 die-cast aluminum LED cabinet can be used for fixed
installation and perimeter display.It's widely used for commercial advertising and stadium.Outdoor IP65 waterproof protection / wall-mounted, floor standing installation / High brightness
advertising LED billbord
Features:
- Light weight, die-casting magnalium material, only around
23kg/cabinet, save shipping cost.
- Easy installation, fast fixed lock design, easy and quick
installation, save labor cost.
- High precision, good flatness, no bright and dark lines after
splicing.
- General design criterion, can be used for indoor, outdoor, fixed,
rental and perimeter display.
Technical Parameters:
| Technical parameters | Outdoor Fixed LED Display Screen |
| Pixel Pitch: | 4 mm | 5.33 mm | 6.67 mm | 8 mm | 10 mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960×960x137 mm | 960×960x137 mm | 960×960x137 mm | 960×960x137 mm | 960×960x137 mm |
| Module Size: | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm |
| Cabinet Weight: | 28 kg | 28 kg | 28 kg | 28 kg | 28 kg |
| Cabinet Material: | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium |
| Driving Type: | 1/10 | 1/7&8 | 1/6 | 1/5 | 1/2 |
| Brightness: | 6000 nits | 5000 nits | 5500 nits | 5500 nits | 5500 nits |
| Max/Avg Power: | 850/298 W/m2 | 750/263 W/m2 | 800/280 W/m2 | 700/245 W/m2 | 800/270 W/m2 |
| Maintenance: | Front service | Front service | Front service | Front service | Front service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Applications:
Retail store, shopping mall, stadium, square, stage and so on.
Every outdoor scene you can ever imagine, P2.5 Outdoor Fixed LED
Display is absolutely suitable.
Service&support
Pre-sale service:
Inquiries will be replied within 24 hours. Market research and
forecast for customer. Provide unique and professional solutions
based on customer's requirement. Data sheet and samples offered.
Other required services such as special packing design, factory
visiting and so on.
In-sale service:
Tracking producing procedures all the time. Provide photos and
videos as per customer's requirement during production. Free spare
parts provided.
After-sale service:
Complaint respond period not exceed 24 hours; maintenance guidance
and problem solution supplied in 48 hours. Warranty: 24 months.
Free technician training. Full set of documents free of charge,
which including installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
FAQ:
Q1:Can we custom LED display screen size?
A1: With extensive experience in a diverse range of markets and
applications, we ensure the development of a unique LED video wall,
configured LED video wall, or a custom display that matches your
exact requirements. We provide custom LED display, custom shape LED
screens of any sizes including giant and slim LED display and so
much more. The bigger size is with the better effect . So just feel
free to contact us , we could provide you the reasonable and
suitable solution for your project.
Q2:How to install it after received?
A2: We will offer you the drawing to guide you for installation,
even send our engineer toyou for help if needed.
Q3: What's the weight of one cabinet?
A3: One standard 960x960mm OFR cabinet is 28kg.
Q4: Why do you recommend to use OFR die casting aluminum cabinet?
A4: Because OFR die casting aluminum cabinet is light and thin, the
screen will looks beautiful, meantime easily for installation. And
if you need to use the screen for rental in the future, OFR can do
that, too.
Q5: Are you trading company or manufacturer?
A5: VISUAL WORLD is a professional LED display manufacturer, having
been enrolled in led display industry with professional
R&D team and skilled QC team for 10 years.
