4500:1 High Contrast Ratio Outdoor Indoor Stage Rental LED Display
500x500mm Cabinet
Product Description:
High protection grade of IP65 suitable for winter and cold areas
like North European countries and Russia, and high temperature like
USA, Oman, UAE, etc
No deformation under sunlight by the use of Anti-UV module mask,
Anti-Oxidation module frame with protection from deformation .
Using high efficiency IC driver, improved PCB design, Power
conversion efficiency.
Features:
- Quick installation:Fast lock and cabinet magnet design for quick
and easy installation.
- Front & rear service:Can be front and rear maintenance, independent
power box design.
- Light weight:Only 7.5kg/cabinet, save shipping cost.
- Hign contrast:4500:1 contrast ratio.
Technical Parameters:
| Technical Parameters | Stage Rental LED Display |
| Product Model: | P2.97 | P3.9 | P3.9 | P4.8 |
| Pixel Pitch: | 2.97 mm | 3.9 mm | 3.9 mm | 4.8 mm |
| LED Type: | SMD2121 | SMD2121 | SMD1921 | SMD1921 |
| Cabinet Dimension: | 500×500x77 mm | 500×500x77 mm | 500×500x77 mm | 500×500x77 mm |
| Module Size: | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Weight: | 7.5 kg | 7.5 kg | 7.5 kg | 7.5 kg |
| Cabinet Material: | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/21 | 1/16 | 1/16 | 1/9 |
| Brightness: | >1000 nits | >1000 nits | >5000 nits | >5000 nits |
| Max/Avg Power: | 560/224 W/sqm | 560/224 W/sqm | 780/312 W/sqm | 780/312 W/sqm |
| Maintenance: | Front & Rear service | Front & Rear service | Front & Rear service | Front & Rear service |
| Environment: | Indoor Use | Indoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP30, R: IP30 | F: IP30, R: IP30 | F: IP65, R: IP54 | F: IP65, R: IP54 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Hanging/Stacking | Hanging/Stacking | Hanging/Stacking | Hanging/Stacking |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Applications:
Widely used in stage rental, song and dance activities, various
conferences, exhibitions, stadiums, theaters, auditoriums, lecture
halls, multi-function halls, conference rooms, performance halls,
disco bars, nightclubs, high-end entertainment disco, TV Spring
Festival Gala, important cultural activities in various provinces
and cities and other places.

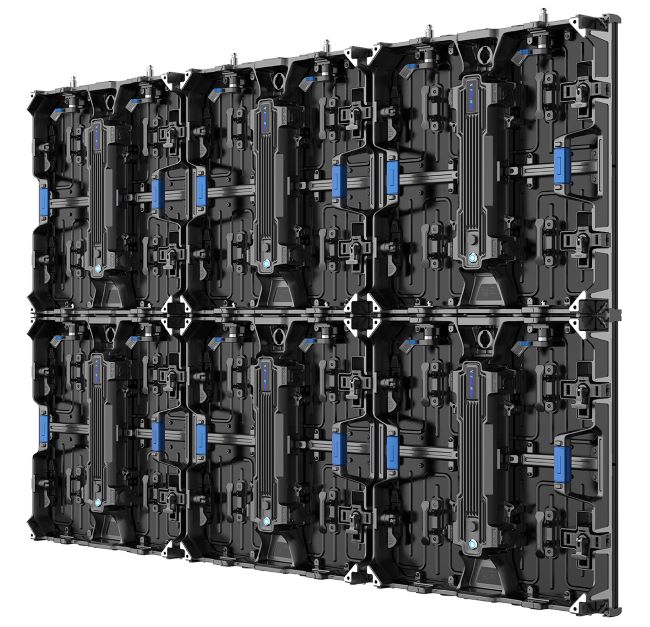

Picture:

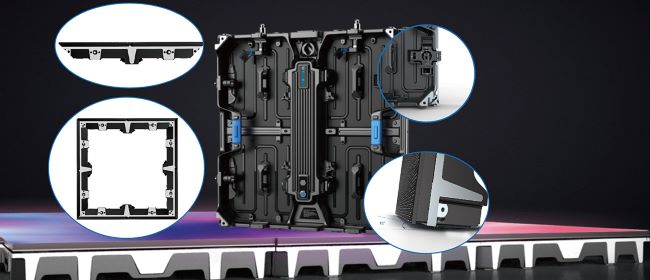

Protect corner and anti-knock design, Can do convex and concave curved screen. (+12°, +3°, 0°, -12°)and 45° beveled cabinet for right angle screen, optional.
Fast lock and cabinet magnet design for quick and easy installation
FAQ:
Q1.How can I get an accurate quote for an advertising signage LED
video wall display screen?
A1:a. Please let us know which screen you need,indoor or outdoor ;
pixel,screen size ,etc
b.Please tell us the usage scenarios (concerts, churches,
exhibition halls, conference rooms, shopping mall billboards)
c. It would be better to have CAD drawings, artworks
Q2.How long does it take for me to get the price of indoor and
outdoor LED display screen?
A2:-We usually quote immediately after receiving your inquiry
-If you need a price urgently, please send a TM message, email
,whatsapp or contact us by other ways
Q3. Can l buy samples and place an order?
Q4.What is your delivery time?Indoor and outdoor fixed video wall,
indoor and outdoor rental LED panel
A4:-Depending on the orders’ situation, LED modules in stock will
be shipped next day.
-Usually small quantities of customized products are shipped within
15 days, and large quantities are 15-20 woring days.
Q5. How many years is your LED screen warranty? (creative flexible
LED screen, transparent display, )
A5:-Depending on LED Screens’ Configuration, 2-5 year warranty is
for different order
Q6.How is your digital HD LED advertising screen packaged?
A6:-Packing in carton, wooden case or flight case
Q7.What are your payment terms?
A7:-T/T,Western Union, Credit Card,Paypal,etc -30% deposit +70% TT
in hand before shipping
Q8. What is the shipping method?
A8:-Can be shipped by sea, air or express (EMS, UPS, DHL, TNT,
FEDEX, etc.) Please confirm with us before placing an order.
Q9. How do you make our business long term and good relationship?
A9:a. We promise best quality and competitive price to ensure our
clients will benefit more from our products;
b. We are honest, frank for all of our customers. We believe that a
win-win situation can achieve longer time business cooperation
