Integrated Power Box Front Service 320*320mm Smart Outdoor LED
Display Module
Product Description:
320x320mm Smart LED module / Modular Design / less weight, high protection,easy to rig / IP67 protection level, waterproof and anti-salt / Easy to
assemble,install and maintain / Signal and power cable all in one
Features:
- Light weight:Die-casting aluminum material, only 15kg/sqm, save
shipping cost.
- Integrated design:Integrate power supply, receiving card and module
into one cabinet.
- Ip67:High protection level, waterproof and dustproof, vo grade
fireproof material is used, safe and reliable.
- 45° beveledge design:45° beveledge design, various shapes splicing.
Technical Parameters:
| Technical Parameters | Outdoor LED Display Module |
| Product Model: | P2.85 | P4 | P6.67 |
| Pixel Pitch: | 2.85 mm | 4 mm | 6.67 mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 |
| Cabinet Dimension: | 320×320x37 mm | 320×320x37 mm | 320×320x37 mm |
| Module Size: | 320x320 mm | 320x320 mm | 320x320 mm |
| Cabinet Weight: | 15 kg | 15 kg | 15 kg |
| Cabinet Material: | Aluminum | Aluminum | Aluminum |
| Driving Type: | 1/16 | 1/16 | 1/6 |
| Brightness: | >4500 nits | >5000 nits | >5000 nits |
| Max/Avg Power: | 800/200 W/m2 | 800/200 W/m2 | 800/200 W/m2 |
| Maintenance: | Front service | Front service | Front service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:160° | H:140°；V:160° | H:140°；V:160° |
| Operational Temp: | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |

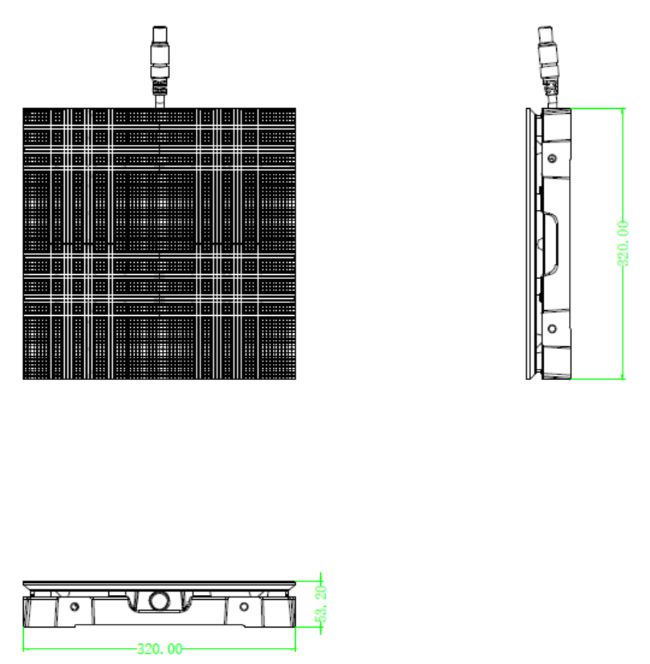

Drawing:
Outdoor 320x320x37mm Smart LED Module.
320x320mm Aluminum Frame.

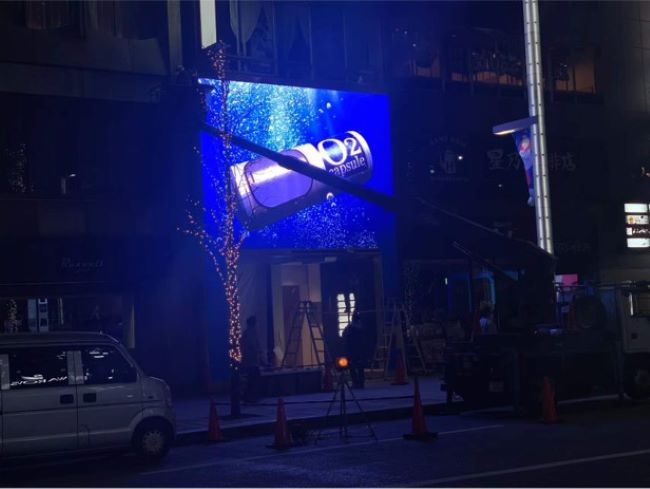

Apllication:
This product can be used for advertising, informational displays,
and even as a background for events and performances. With its high
brightness and resolution, it can easily attract the attention of
passersby and deliver your message effectively.
Pictures:
320x320mm Front maintenance LED module, integrated power supply and
receiving card.
FAQ:
Q1. Can I have a sample order for LED display?
A1: Yes, we welcome sample order to test and check quality. Both
for module or whole screen.
Q2. What about the lead time?
A2:Order less than 100 square meter led time take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A3: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We mostly accectp FOB train term, but we can help you order and
arrange shipping agent. It usually take 20 30 day on sea. a few
days for customer clearance
Q5. How to proceed an order for LED display?
A5: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the design document and places deposit
for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A6: Yes. Please inform us formally before our production and
confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 1 years warranty to our products
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution
including re-call according to real situation.
