800-1000nits Indoor P4 Space-saving Design Flexible LED Display
with Front Service
Product Description:
The flexible module is a product based on the conventional hard
module after technical breakthrough. The purpose is to solve the
use of non-flat wall or structure application scenarios in the led
display market. After several years of technical precipitation,
Visual World's flexible module products have become very mature,
and there are corresponding solutions for both indoor and outdoor.
Features:
- Space-saving compact design saves space and labor costs;
- Flexible features, easy installation and adaptable to different
building structures;
- Highly customizable features with a wide range of customization
options for size, shape, and pixel pitch;
- Highly maneuverable - easy to install, dismantle, fold, store and
transport.

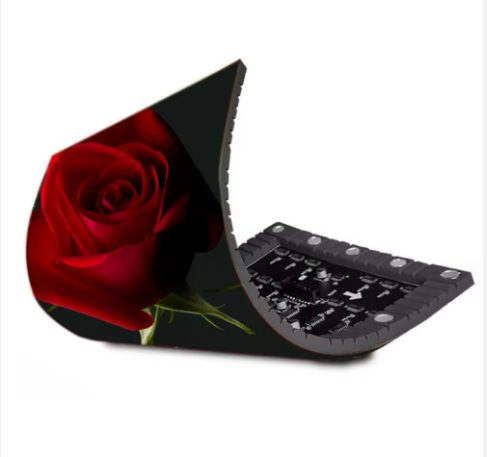

- Flexible:Soft pcb design, can be curved, flexible installation

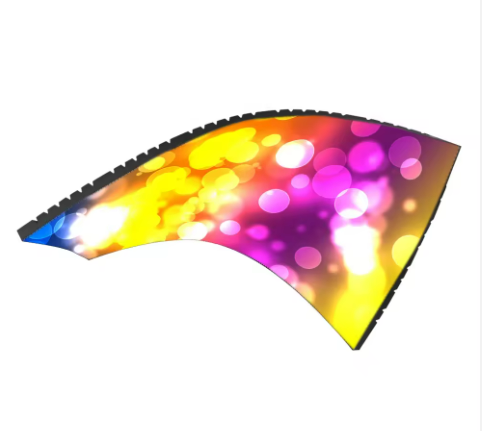

- Bendable module:Flexible modules can do front and reverse bending
to achieve inner and outer curved application. Minimum diameter 1m
for building led cylinder.
- Thin and light:With module protective silicon shell, the module is
only 8.6mm and weighs 0.17kg.
- Various shape:Can be made for circle, column, wave...etc shapes
- Front service:Fixed by magnets, easy and quick installation, front
access and maintenance
- Seamless installation:Precise module size and easy magnetic
installation allows it to present seamless visual content.
Technical Parameters:
| Technical Parameters | Flexible LED Display Screen |
| Pixel Pitch: | 4 mm |
| LED Type: | SMD2121 |
| Cabinet Dimension: | 960×720mm |
| Module Size: | 240x120 mm |
| Cabinet Weight: | 19kg |
| Cabinet Material: | Simple Steel |
| Driving Type: | 1/15 |
| Brightness: | 800-1000nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| IP Rating: | IP20 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 12 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
1. Creative Designs
One of the main features of flexible LED display is that it can fit
in different applications with the creative designs as the high
potentials it owns make it can be suitable to more conditions.
According to this screen’s specialties, it can achieve many
creative LED displays such as LED cube display, spherical LED display, ribbon LED display and so on.
Sometimes the display can be customized to certain angles for you
if you have such need so as to achieve more adventurous shapes.
2. 360° emcompassing LED display screen
Flexible LED displays are ultra-thin, light and have flexibility.
Therefore, it can design highly flexible shapes such as ribbon, and
can be bend 180°.
(1).The LED display module with soft cover can achieve the highest
color uniformity and grayscale, which can protect LEDs effectively.
(2).The flexibility makes LED display installation easily and
quickly.
(3).The high flexibility gives designers more free to create more
innovative shapes.
Our Service:
Pre-sale service:
Inquiries will be replied within 24 hours. Market research and
forecast for customer. Provide unique and professional solutions
based on customer's requirement. Data sheet and samples offered.
Other required services such as special packing design, factory
visiting and so on.
In-sale service:
Tracking producing procedures all the time. Provide photos and
videos as per customer's requirement during production. Free spare
parts provided.
After-sale service:
Complaint respond period not exceed 24 hours; maintenance guidance
and problem solution supplied in 48 hours. Warranty: 24 months.
Free technician training. Full set of documents free of charge,
which including installation guidance, software operation manual,
easy maintenance manual and control system software CD and so on.
FAQ:
Q1: Are you a manufacturer or trading company?
A1: We are LED manufacturer, OEM & ODM optional, multi-solutions
provider, more than 10 years experience in LED industry! What’s
more, Visual World is a modern factory dedicated to applying
artificial intelligence to the LED industry.
Q2: How about the warranty?
A2: We provide at least 2 years warranty, and some products can be
5 years warranty. Even after the warranty, we can still repair
product for free, you just need to pay for the shipping cost.
Q3: Can you customize my logo on LED display?
A3: Of course, we can print your logo on PCB and LED Cabinet if you
need. Thus you will keep your own brand.
