P0.7 COB Small Pixel Pitch LED Display IP54 Front Service 2000nits
High Brightness
Product Description:
Introducing our P0.7 COB Small Pixel Pitch Display, a
groundbreaking innovation designed to redefine visual experiences.
Leveraging cutting-edge display technology, it delivers exceptional
performance, energy efficiency, and stunning clarity, making it the
ideal choice for premium digital signage, immersive virtual reality
environments, and beyond.

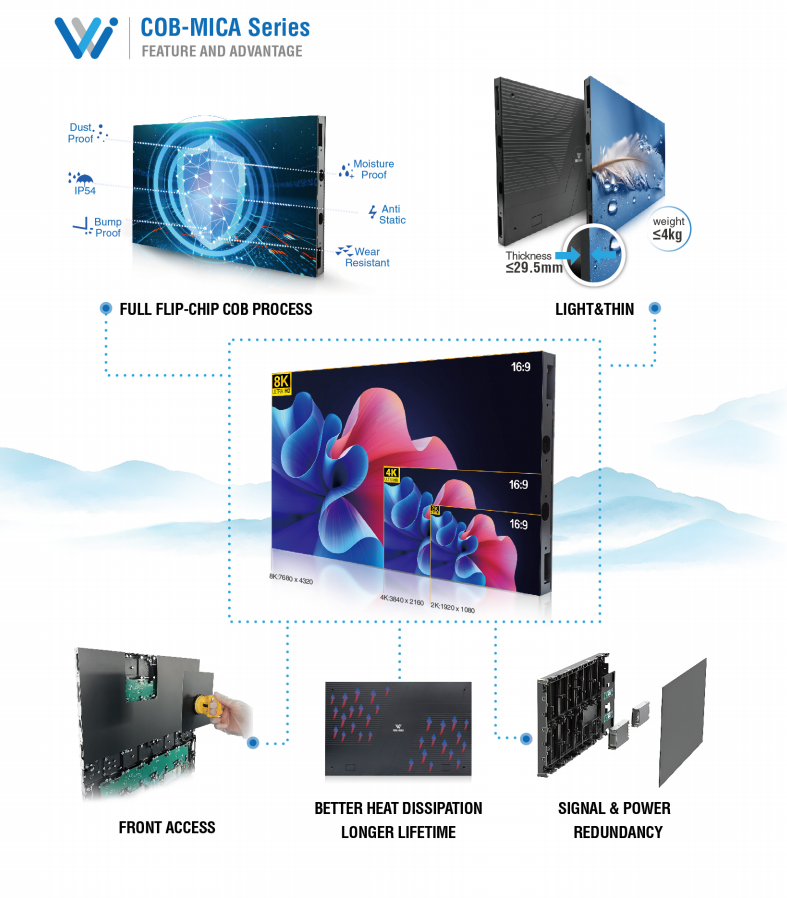

Features:
- High Brightness: Brightness up to 1000nits.
- Energy Saving: Energy saving 30%.
- High Reliability: Flip-chip common cathode, better heat dissipation, and more
stability.
- Patented Appearance Treatment: No white edge and burrs of the module; light transmittance up to
75% and low temperature.
- High Contrast Ratio: ＞20000: 1.
- High Consistency: Micro LED flip-chip mixed processing technology & same Bin chips.
- Wide Color Gamut: DCI-P3 wide color gamut.
- Easy Installation: Full front maintenance, multiple disassembly, and assembly of LED
modules without white edges.
- Various Applications: Support wall-mounted installation, floor-standing, and hanging
installation.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating | Front: IP54 Rear: IP30 | Front: IP54 Rear: IP30 | Front: IP54 Rear: IP30 | Front: IP54 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Service and support:
Pre-Sale Services
In-Sale Services
- Production Monitoring: Regular updates and progress tracking.
- Visual Updates: Photos/videos are provided upon request.
- Free Spare Parts: Complimentary spares for enhanced reliability.
After-Sales Support
- Rapid Complaint Handling: Issues addressed within 24 hours, and
solutions in 48 hours.
- Comprehensive Warranty: 24-month warranty for reliability.
- Technical Training: Free sessions for technicians.
- Complete Documentation: Includes installation guide, software
manual, maintenance guide, and control system software CD.
FAQ:
Q1: Do you accept customization?
A1: Absolutely! We offer tailored solutions to meet your specific
needs. Our team will work closely with you to design a personalized
plan based on your requirements and application.
Q2: Can you print our logo on the LED screen?
A2: Yes, we can. We provide logo printing services to customize
your LED display according to your branding preferences.
Q3: Can I order a sample of the LED display?
A3: Certainly! We encourage you to order a sample to evaluate the
quality and performance of our products. You can choose any item
from our range for testing.
Q4: What services do you provide?
A4: We offer a comprehensive 2-year quality warranty on all our
products. If any components require repair or replacement, you can
send them back to our facility in Shenzhen for prompt service.
Q5: How do I select the right product?
A5: To help you choose the best product, please share your specific
requirements, such as viewing distance, screen size, installation
height, and other relevant details. Based on this information,
we’ll provide a tailored recommendation to suit your needs.
