P5.2-10.4 Outdoor Transparent LED Display 1000×500mm 5000nits Front
Service
Product Description:

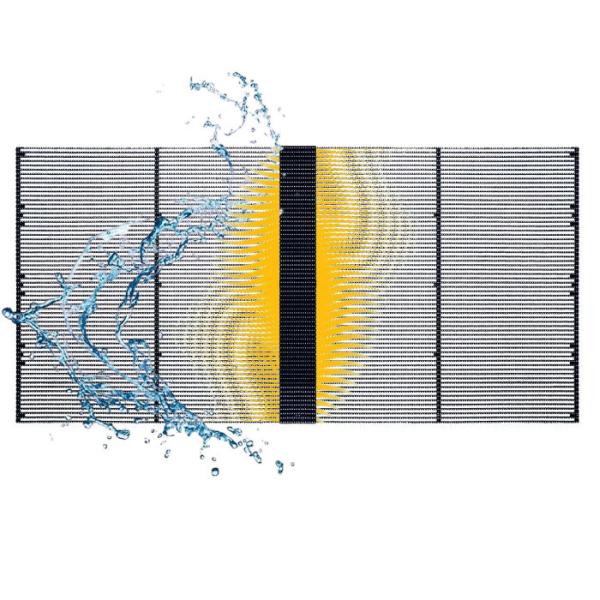

P5.2-10.4 Transparent LED screens provide a highly effective and
captivating alternative to traditional large-format LED displays.
These screens produce cohesive images by coordinating LEDs to light
up in precise pixel colors. When integrated into glass curtain
walls, they create an imposing effect, allowing designers to
implement display solutions for retail spaces—particularly those
with glass facades—without interrupting the architectural design.
Features:
- High contrast and brightness
Extra flexibility, weighs under 8.5 Kg/m2 and thinner than 25mm.
Very convenient to use and move, saving a lot of transportation and
assembling costs
Low power comsumption and energy saving, Low consumption of
electricity to increase the lifetime of LED
75% transparency rate, see through, suitable for glass wall
mounting；>5000 nits brightness, for all outdoor environment
Technical Parameters:
| Technical Parameters | Transparent LED Display |
| Pixel Pitch: | 5.2-10.4 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×500mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 15 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m² |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Transparent Rate: | 75% |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
| Installation Type: | Mounting/Hanging |

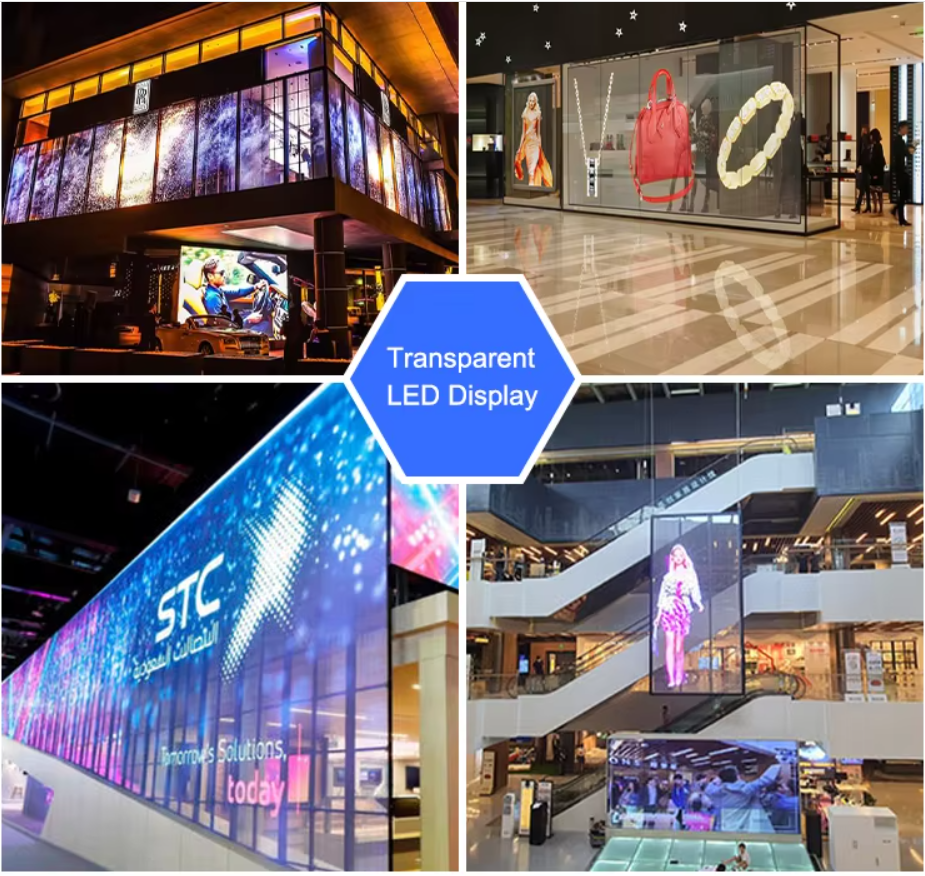

Applications:
Widely utilized in shopping malls, entertainment venues,
architectural projects, government institutions, trade shows, and
for purposes such as exhibitions, press conferences, airports,
hotels, station waiting areas, indoor arenas, and various other
public facilities.
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 10-15 working days after confirm receipt payment in advance.
FAQ:
Q1. Can I have a sample order?
A1: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2: What LED screen size you can do?
A2: Screen size can be customized based on your demand.
Q3: How to control the LED screen?
A3: We can configure control system, from Novastar or Colorlight,
operation is easy.
Q4: Can you provide installation structures?
A4: Yes, we can provide installation structures for wall-mounted,
hanging and stacking installation.
Q5: Do you test your LED screen before shipping?
A5: Yes, we do 100% product ageing test for 72 hours before package
and shipping.
Q6: What will you do if we have problems related to installation,
configuration and use?
A6: Our after-sale service team will solve all the problems, until
the screen can work normally.
