P6.67 Outdoor Fixed LED Display SMD3535 5500nits 960x960mm Rear
Service
Product Description:
Fixed led display screen refers to the led display screen installed
in a fixed position. It can be separated into indoor and outdoor
installation depending on the conditions. With powerful features
including light weight, dust prevention, waterproofness, high
temperature resistance, flame retardancy, automatic power on/off
and brightness control. Visual World offers the most stable and
long service life outdoor fixed installation led displays.
Features:
- Waterproof:Durable, waterproof, fast heat dissipation aluminum cabinet with
ip65 protection level for outdoor using.
- Front service:The cabinet and module have compatible front locks design which
allows technicians to do front maintenance effortless.
- High brightness:Customized module pcb and designated power supply make it up to
6000nits brightness.
- Wide viewing angles:Wide viewing angles horizontal 140°, vertical 140° allows audience
to watch the screen clearly from distances.
- Quick installation:Simple internal cables connection and positioning pins, quick and
easy installation.
Technical Parameters:
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting /Hanging | Mounting /Hanging | Mounting /Hanging | Mounting /Hanging | Mounting /Hanging | Mounting /Hanging | Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |

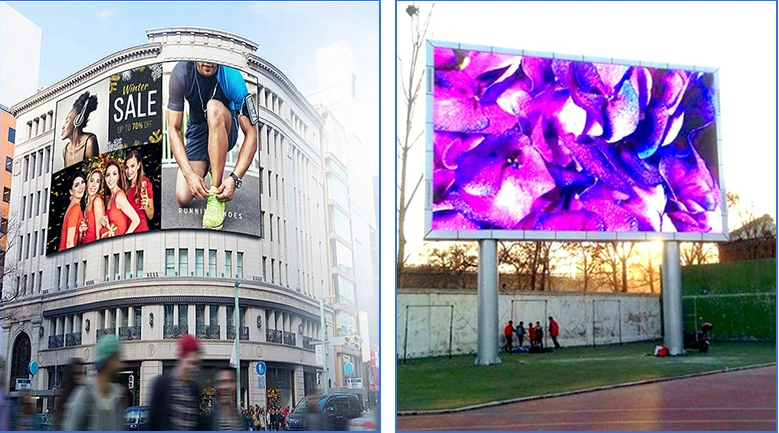

Application:
Outdoor creative modeling
Building entrance
Park entrance
Swimming pool
Advertising billboard
Playing field
Outdoor activity area
Roadside poster
Building exterior wall
Accessories:
- Novastar video processor
- Power supply
- Receiving card
- Main signal cable
- Main power cable
- Metal connector
- Screws
- Module power cable
- Module safety rope
- Flat cable
- module mask
- module shell
- Front service suction tool
- Waterproof rubber ring
- Waterproof signal connector
- Waterproof power connector
- Light sensor
Maintenance tools
- Front service suction tool
- Heat gun
- Soldering station
- Soldering paste
- Tin wire
- Glue
- Tweezers
- Magnifier
- Multimeter
- Brightness meter
FAQ
Q1. Can I have a sample order?
A1: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2: What LED screen size you can do?
A2: Screen size can be customized based on your demand.
Q3: How to control the LED screen?
A3: We can configure control system, from Novastar or Colorlight,
operation is easy.
Q4: Can you provide installation structures?
A4: Yes, we can provide installation structures for wall-mounted,
hanging and stacking installation.
Q5: Do you test your LED screen before shipping?
A5: Yes, we do 100% product ageing test for 72 hours before package
and shipping.
Q6: What will you do if we have problems related to installation,
configuration and use?
A6: Our after-sale service team will solve all the problems, until
the screen can work normally.
