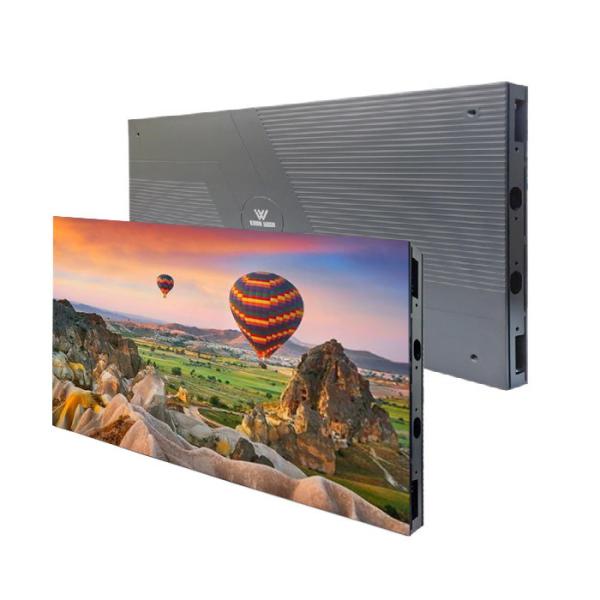

P0.9 Small Pixel Pitch LED Display 600x337.5mm Front Service For
Theater
Product Description:
The P0.9 Small Pixel Pitch LED Display COB from VISUAL WORLD is a
state-of-the-art display solution that elevates high-definition
visuals. With a pixel pitch of just 0.9mm, it guarantees sharp and
detailed images, making it perfect for applications that require
exceptional visual precision and clarity.
Designed in a compact 600x337.5mm module size, this COB LED display
offers flexibility and straightforward installation. Its die-cast
aluminum cabinet not only contributes to a sleek, modern look but
also ensures the display's durability and lightweight design.
Features:
- Full flip-chip COB process, protection technology includes:
anti-collision, waterproof, moisture-proof, salt spray, (to prevent
LED screens from blinding or caterpillar failures caused by lamp
tubes getting damp in high-humidity and salt-spray environments).
- The module adopts 3D ink printing technology, which increases the
contrast by 20% and reduces the requirements for display
brightness.
- Supports LCD status display panel, which can intuitively understand
the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with
good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode
chip, which has higher performance and a grayscale level of up to
16bit.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m2 |
| IP Rating | Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type | Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
- Digital Signage system
- Home cinema / theater
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 10-15 working days after confirm receipt payment in advance.
FAQ:
Q1:Are you a manufacturer or trading company?
A1:We are a professional OEM/ODM manufacturer ,which has
specialized in the LED display industry for more than 10 years.
Q2:How does your factory do regarding quality control?
A2.The lamp beads used in our LED display are all genuine lamp
beads.We are do not need to be used scattered lights and tail
lights. Using silver-containing solder paste, pure copper power
cords and short cables, a good screen is our commitment to every
customer.
Q3:What is your MOQ?
A3.Any quantity is acceptable for your order. And the price is
negotiable for large quantities.
Q4.How about your warranty term?
A4. Calculated from the goods to the customer, the warranty period
is 2 years, don’t worry, there is a problem with the module,you can
send it back to Shenzhen for repair.
Q5:When will you make the delivery?
A5.We can make the delivery within 3-5 working days for the led
modules and 10-15days for the led finished screen according to the
size and quantities of your order.
