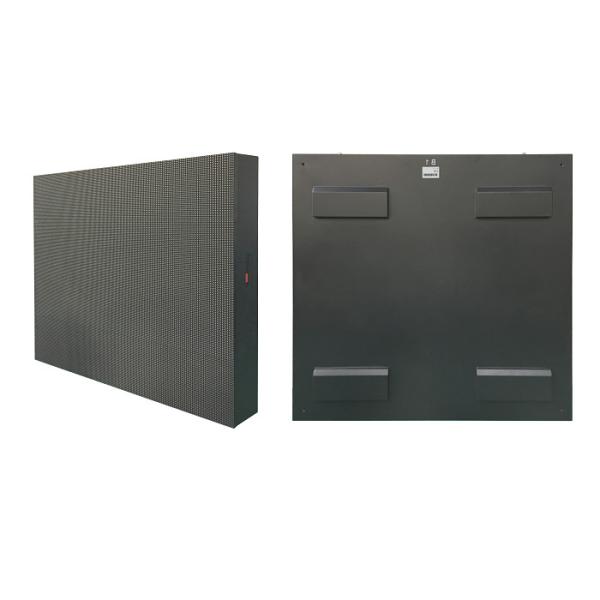

P2.5 Aliuminum Profile Outdoor Fixed LED Display Screen with 960X960mm Cabinet

Ask Lasest Price
Brand Name :	VW
Model Number :	P2.5
Certification :	EMC,CE,FCC,ROHS
Price :	Negotiate
Payment Terms :	T/T
Supply Ability :	1000sqm per month
Delivery Time :	3-6 work days

Add to Cart

Product Details
Company Profile

P2.5 Aliuminum Profile Outdoor Fixed LED Display Screen with 960X960mm Cabinet

P2.5 Aliuminum Profile Outdoor Fixed LED Display Screen with 960X960mm Cabinet

Product Description:

100% full front access fixed LED Display / 1000*1000mm Aluminum profile LED Panel / Wall-mounted outdoor LED screen / Waterproof LED Video wall / Outdoor LED screen without fan

Features:

High brightness:the brightness can be over 6000nits, even 8000nits.
Flanless design:Good heat dissipation without fans
Front access:100% full front service, led module and power box all can be took out from front side.
Aluminum module:Aluminum bottom base of module, more stable and good heat dissipation.

Technical Parameters:

Product Model:	P2.5	P3	P3.076	P3.33	P3.33	P4	P4
Pixel Pitch:	2.5mm	3mm	3.076mm	3.33mm	3.33mm	4mm	4mm
LED Type:	SMD1415	SMD1415	SMD1415	SMD1921	SMD1921	SMD1921	SMD1921
Cabinet Dimension:	960x960mm	960x960mm	960x960mm	960x960mm	960x960mm	1024x1024mm	960x960mm
Module Size:	160×160mm	192×192mm	192×192mm	160×160mm	320×160mm	256×128mm	320×160mm
Maintenance	Rear service	Rear service	Rear service	Rear service	Rear service	Rear service	Rear service
Cabinet Weight:	38 kg	38 kg	38 kg	38 kg	38 kg	38 kg	38 kg
Cabinet Material:	Steel	Steel	Steel	Steel	Steel	Steel	Steel
Driving Type:	1/16	1/16	1/13	1/12	1/12	1/8	1/10
Brightness:	5500 nits	5500 nits	5000 nits	5500 nits	5500 nits	6500 nits	5500 nits
Max/Avg Power:	800/280 W/m2	800/280 W/m2	800/280 W/m2	800/280 W/m2	800/280 W/m2	800/280 W/m2	800/280 W/m2
Environment:	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
IP Rating:	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Refresh Rate:	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz
Installation Type:	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging
Gray Scale:	14 bit	14 bit	14 bit	14 bit	14 bit	14 bit	14 bit
Viewing Angle:	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°
Operational Temp:	-20℃~+60℃	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
Operational Humidity:	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH

Product Model:	P5	P5	P5.926	P6	P6.67	P8	P8
Pixel Pitch:	5mm	5mm	5.926mm	6mm	6.67mm	8mm	8mm
LED Type:	SMD1921	SMD1921	SMD2727	SMD2727	SMD3535	SMD3535	SMD3535
Cabinet Dimension:	960x960mm	960x960mm	960x960mm	960x960mm	960x960mm	960x960mm	960x960mm
Module Size:	160×160mm	320×160mm	320×160mm	192×192mm	320×160mm	256×128mm	320×160mm
Maintenance	Rear service	Rear service	Rear service	Rear service	Rear service	Rear service	Rear service
Cabinet Weight:	38 kg	38 kg	38 kg	38 kg	38 kg	38 kg	38 kg
Cabinet Material:	Steel	Steel	Steel	Steel	Steel	Steel	Steel
Driving Type:	1/8	1/8	1/7	1/8	1/6	1/4	1/5
Brightness:	5200 nits	5200 nits	5800 nits	5000 nits	5500 nits	5500 nits	5800 nits
Max/Avg Power:	800/280 W/m2	800/280 W/m2	800/280 W/m2	800/280 W/m2	800/280 W/m2	800/280 W/m2	800/280 W/m2
Environment:	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
IP Rating:	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Refresh Rate:	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz
Installation Type:	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging	Mounting /Hanging
Gray Scale:	14 bit	14 bit	14 bit	14 bit	14 bit	14 bit	14 bit
Viewing Angle:	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°	H:140°；V:120°
Operational Temp:	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
Operational Humidity:	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH

Product Model:	P10	P16
Pixel Pitch:	10mm	16mm
LED Type:	SMD3535	SMD3535
Cabinet Dimension:	960x960mm	1024x1024mm
Module Size:	320×160mm	256×256mm
Maintenance	Rear service	Rear service
Cabinet Weight:	38 kg	38 kg
Cabinet Material:	Steel	Steel
Driving Type:	1/2	Static
Brightness:	6000 nits	6500 nits
Max/Avg Power:	800/280 W/m2	800/280 W/m2
Environment:	Outdoor	Outdoor
IP Rating:	IP65	IP65
Refresh Rate:	>1920 Hz	>1920 Hz
Installation Type:	Mounting/Hanging	Mounting/Hanging
Gray Scale:	14 bit	14 bit
Viewing Angle:	H:140°；V:120°	H:140°；V:120°
Operational Temp:	Outdoor	Outdoor
Operational Humidity:	10%~90% RH	10%~90% RH

Drawing:

Outdoor waterproof 1000x1000x90mm Aluminum Profile LED Panel.

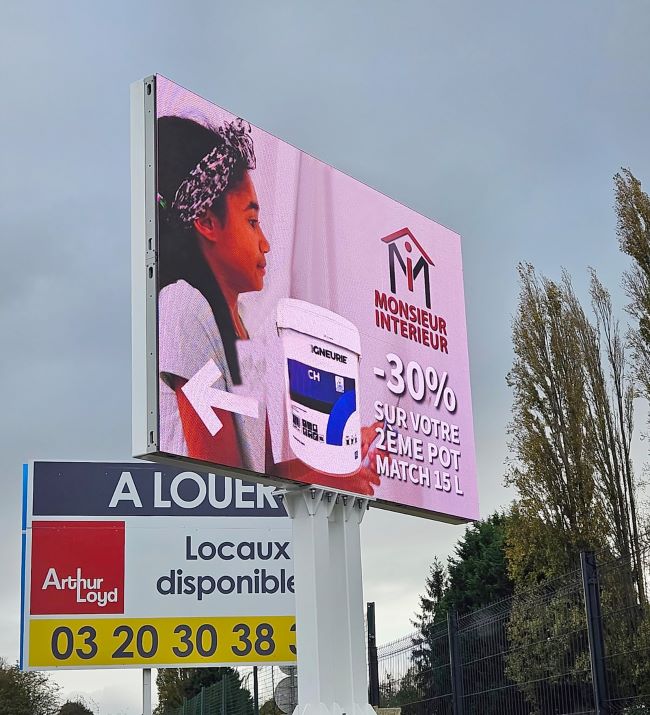

Application:

Wharf Mall

Train station

Theme Park

Outdoor activity area

Building exterior wall

creative modeling

Park entrance

FAQ:

Q1:What is an LED screen?

A1:The main characteristic of the LED screen is that the lighting system is created with LED bulbs that emit light and are synchronized to give the effect of a video screen. These bulbs are grouped in modules that facilitate their installation and maintenance. If a module needs to be replaced, it can be easily uninstalled from the screen.

Outdoor LED screens are used both as advertising and informative screens, creating giant LED screens with iron structures or installed in cabinets of different sizes to facilitate their installation and maintenance.

Q2:What are the differences between LED screens and LCD advertising screens?

A2:The main difference between these two types of screens is their technology. Outdoor LED screens to use light bulbs as a light source, while LCD technology screens use a layer of liquid crystal that can improve their resolution but only reach 98 inches in total size.

Q3:What are the components of an Outdoor LED screen?

A3:The components of LED screens are diverse, and you can also add accessories according to how you need them to be installed, but here we will talk about the electronic components of LED screens.

LED modules with different sizes.

Cabinets are made of iron or aluminium.

Power supply

Sending card (it is an accessory and is not inside the screen)

Receiving card
