Smart interactive sensor design
IP65 waterproof design and special skidproof mask design
High load-bearing, 1.5T/sqm
Heat sink design and aluminum cabinet, speed up the heat conduction
Rail or adjustable foot installation, optional
Cabinet size could be 500x500mm and 500x1000mm, optional
TECHNICAL PARAMETERS
Product Attributes | Value |
|---|
Pixel Pitch | 1.5mm, 1.9mm,2.6mm,2.97mm, 3.9mm, 4.8mm, 5.2mm, 6.25mm |
Cabinet Dimension | 500x500/1000mm |
Module Size | 250x250 mm |
Cabinet Weight | 12/25 kg |
Cabinet Material | Die-casting aluminum |
Brightness | 1000-4000 nits |
Maintenance | Front&Rear service |
Environment | Indoor&Outdoor Use |
IP Rating | F:IP65 ; R: IP54 |
Refresh Rate | 1920Hz |
Load Bearing | 1.5 T/sqm |
Gray Scale | 14bit |
Control System | Synchronization Asynchronization |
Input Voltage | AC110V-240V |
Lifespan | 100,000 Hours |
Installation Method | Wall-mounted/ Hanging/ Stacking |
Contrast Ratio | 3000:1 |
Colors | 16.7M |
PRODUCT DETAILS
1.HIGN LOAD-BEARING
LED floor screen is made of imported PC materials. It has high wear
resistance, flexibility, and excellent resistance to high and low
tempertures.
2. EXCELLENT PERFORMANCE
Dancing floor screen uses high-quality SMD LED with stable quality,
good colorconsistency, and long service life. The products
trampling. have good waterproof and dustproof effect. Broadcast
color gamut, color temperature and brightness, are intelligently
adjustable, high contrast, beautiful and natural picture.
3. GLASS SURFACE DESIGN

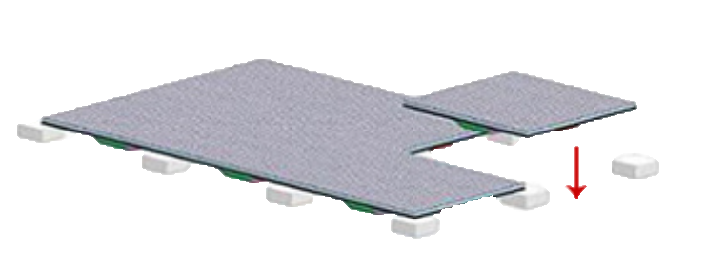

INSTALLATION TYPES
Rail or adjustable foot installation, optional
Rail installation
Adjustable foot installation
APPLICATIONS
Stage, Conferences, Expo, Event, Concert, ect.
FAQ
Q1: What kind of display we provide?
A1: We have indoor/outdoor/rental/fixed LED display/Floor LED
Display/Irregular LED display for you choose.
Q2: Are you manufacturer of LED display. If yes, in which city?
A2: Yes, Our factory with 3000 square meters. And we're in SHENZHEN
city, GUANGDONG Province.
Q3: May I know the package details?
A3: For fixed installation, we use wooden case, usually 2 or 4
cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8
cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
Q4: Can it play HD video?
A4: Yes, it can realize HD video function with Linsn/nova
controlling system
Q5: What's the controlling system?
A5: Our standard controlling system for this model is Linsn/
Novastar. Also support other controlling system, like Xixun, TF,
Colorlight, etc.
Q6: What's the difference between DIP(1R1G1B) and sSMD(One LED, 3
in 1)?
A6: SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3
LED chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens, it reduced grainy of
the screen, and improve the uniform of the screen, this will make
the screen have a more wide viewing angle and smooth image. With
the technology advanced and SMD brightness improved, SMD is more
and more used outdoor.
Q7: How to deal with the faulty?
A7: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution
including re-call according to real situation.
