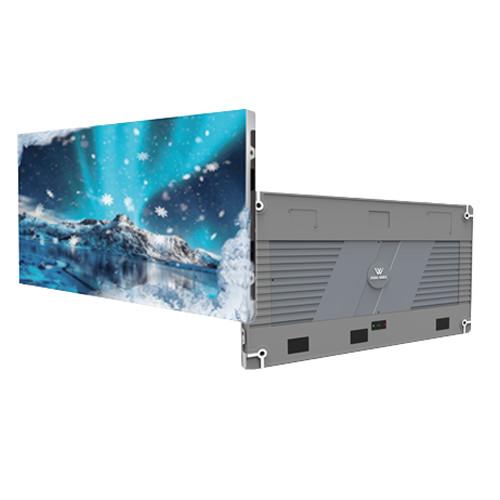

P0.9 COB Small Pixel Pitch LED Display With Die-casting Aliuminum
Cabinet 600x337.5mm
Product Description:
The XMETA i series LED panels is a high-performance visualization
LED display that is optimized for high-definition and
high-resolution applications. With its 6000K adjustable color
temperature, 600x337.5mm size and wall mounted/stacking/rack
installation options, this LED display is perfect for creating
stunning and vivid visuals. It also offers full front access for
easy maintenance. The Fine Pixel Pitch LED Display is designed to
be the perfect solution for any application requiring high-quality
visuals and reliable performance.
Features:
- Full flip-chip COB process, protection technology includes:
anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the
contrast by 20% and reduces the requirements for display
brightness.
- Supports LCD status display panel, which can intuitively understand
the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with
good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode
chip, which has higher performance and a grayscale level of up to
16bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
Advertising publish / retail store / shopping mall / display of
dishes / welcome display / self-service business / exhibition hall
/ airport / subway / elevator / restaurant & hotel supplies /
education / medical treatment /
Our professional experience:
We are a trade factory in Shenzhen with 10 years experience. There
are professional develop engineers, experienced sales engineers,
and skillful workers.
1. If you want to develop a new design LED screen, please contact
us. We can help you.
2. If you have a new project/order but don't know how to process
it, please contact us. We can help provide the best
solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact
us. We are professional.
FAQ:
Q1: What kind of display we provide?
A1: We have indoor/outdoor/rental/fixed LED display/Floor LED
Display/Fine Pixel Pitch LED Display/Irregular LED display for you
choose.
Q2: Are you manufacturer of LED display. If yes, in which city?
A2: Yes, Our factory with 3000 square meters. And we're in SHENZHEN
city, GUANGDONG Province.
Q3: May I know the package details?
A3: For fixed installation, we use wooden case, usually 2 or 4
cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8
cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
Q4: Can it play HD video?
A4: Yes, it can realize HD video function with Linsn/nova
controlling system
Q5: What's the controlling system?
A5: Our standard controlling system for this model is Linsn/
Novastar. Also support other controlling system, like Xixun, TF,
Colorlight, etc.
Q6: What's the difference between DIP(1R1G1B) and sSMD(One LED, 3
in 1)?
A6: SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3
LED chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens, it reduced grainy of
the screen, and improve the uniform of the screen, this will make
the screen have a more wide viewing angle and smooth image. With
the technology advanced and SMD brightness improved, SMD is more
and more used outdoor.
Q7: How to deal with the faulty?
A7: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution
including re-call according to real situation.
