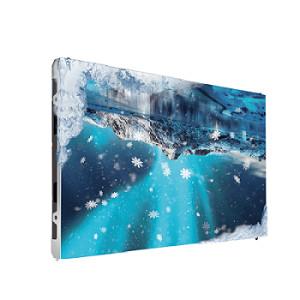

P0.7 COB Small Pixel Pitch LED Display Die-casting Aliuminum Cabinet 600x337.5mm

Ask Lasest Price
Brand Name :	Visual World
Model Number :	P0.7
Certification :	EMC,CE,FCC,ROHS
Price :	Negotiate
Payment Terms :	T/T
Supply Ability :	5000 sqm/month
Delivery Time :	12 work days

Add to Cart

Product Details
Company Profile

P0.7 COB Small Pixel Pitch LED Display Die-casting Aliuminum Cabinet 600x337.5mm

P0.7 COB Small Pixel Pitch LED Display Die-casting Aliuminum Cabinet 600x337.5mm

Product Description:

Full inverted COB process, protection technology with: anti-knock, waterproof, moisture, put salt spray, (to put an end to the LED screen in the high humidity and high salt spray environment due to the lamp moisture caused by blind lights or caterpillars and other failures).

Features:

Full flip-chip COB process, protection technology includes: anti-collision, waterproof, moisture-proof, salt spray, (to prevent LED screens from blinding or caterpillar failures caused by lamp tubes getting damp in high-humidity and salt-spray environments) .
The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.

Technical Parameters:

Model	P0.7	P0.9	P1.25	P1.56
Pixel Pitch	0.7mm	0.9mm	1.25mm	1.56mm
LED Type	COB	COB	COB	COB
Cabinet Dimension	600337.535mm	600337.535mm	600337.535mm	600337.535mm
Module Size	150x168.75 mm	150x168.75 mm	150x168.75 mm	150x168.75 mm
Cabinet Weight	4.6kg	4.6kg	4.6kg	4.6kg
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Driving Type:	1/36	1/36	1/27	1/48
maintenance	Front service	Front service	Front service	Front service
Brightness	0-2000 nits	0-2000 nits	1500 nits	1000 nits
Max/Avg Power	390/136 W/m2	420/147 W/m2	330/100 W/m2	330/100 W/m2
IP Rating	Front: IP65 Rear: IP30	Front: IP65 Rear: IP30	Front: IP65 Rear: IP30	Front: IP65 Rear: IP30
Refresh Rate	>3840Hz	>3840Hz	>3840Hz	>3840Hz
Installation Type	Mounting Hanging Stacking	Mounting Hanging Stacking	Mounting Hanging Stacking	Mounting Hanging Stacking
Gray Scale	16bit	16bit	16bit	16bit
Viewing Angle	H:170°；V:170°	H:170°；V:170°	H:170°；V:170°	H:170；°V:170°
Operational Temp	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃
Operational Humidity	10%-90%RH	10%-90%RH	10%-90%RH	10%-90%RH

Applications:

Digital Signage system
Chain store
Street furniture
Billboard
Football stadium
Perimeter LED poster
Arena display, etc.

P0.7 Small Pixel Pitch LED Display

FAQ:

Q1: What is the control system? How is it?

A1: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.

Q2: Can I have a sample order for led screen?

A2: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.

Q3:Is it OK to print my logo on product?

A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: What is your best service?

A4: 1: One to one sales engineer to customer responsibility system;

2. Know your project and provide the best solution for it;

3. Track your order and let you know each step and detail of it;

4. Teach you how to install and use the screen;

5. Care the subsequent use of your screen and ensure your after - sales service be well.

Q5. How about your delivery time?

A5: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and thequantity of your order.

Q6:How about your Warranty Term?

A6: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
