P0.7 COB Smart LED Poster Display 108inch 600*337.5mm Cabinet For
Conference Room
PRODUCT DESCRIPTION

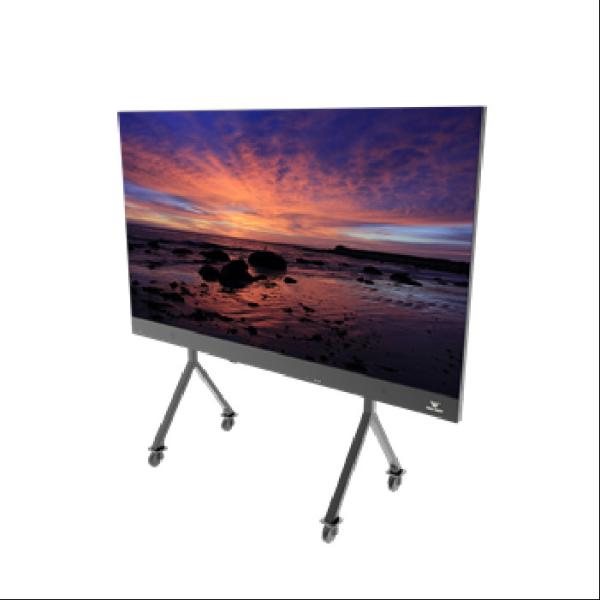

Floor Standing LED TV / Smart all-in-one LED Display / Wireless
Screen Projection.
FEATURES
Easy+no need install, just work like a big TV.
Suitable for more scenes.
Supports wireless screen sharing on Windows, Mac OS, iOS, and
Android systems
It supports file management and playback, management file deletion
can be single-selected or all-selected, and files can be classified
into pictures, music, videos, etc.
TECHNICAL SPECIFICATIONS
| Model | CrystalTV 108”(4X4) |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
Cabinet Dimension (mm) | 600*337.5 | 600*337.5 | 600*337.5 | 600*337.5 |
| Module Size(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| LED Type | COB | COB | COB | COB |
| Display Size(mm) | 2400*1350 | 2400*1350 | 2400*1350 | 2400*1350 |
| Display Resolution | 3072*1728 | 2560*1440 | 1920*1080 | 1536*864 |
Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Cabinet Weight | 130KG (floor standing) 100KG (wall-mounted) | 130KG (floor standing) 100KG (wall-mounted) | 130KG (floor standing) 100KG (wall-mounted) | 130KG (floor standiing) 100KG (wall-mounted) |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/40 | 1/60 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-800 nits | 0-800 nits | 1000 nits |
Max Power Avg Power | 196W/m² 65W/m² | 280W/m² 95W/m² | 330W/m² 110W/m² | 330W/m² 100W/m² |
| IP Rating | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type | Floor Standing Wall Mounting Hanging | Floor Standing Wall Mounting Hanging | Floor Standing Wall Mounting Hanging | Floor Standing Wall Mounting Hanging |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°V:170° | H:170°V:170° | H:170°V:170° | H:170°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
| Input Interface | HDMI2.0 |
| Output Interface | HDMI2.0,AUDIO,SPDIF |
| hardware configuration | CPU(Cortex A76X4+A55X4) |
| RAM(DDR4 4GB) |
| GPU(MailG610) |
| ROM(32G eMMC5.1) |
APPLICATION
FAQ
Q1: What is the control system? How is it?
A1: We use Nova Taurus Series asynchronous control system. Support
cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/
PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A2: Yes, we welcome sample order to test and check quality. Mixed
samples areacceptable.
Q3:Is it OK to print my logo on product?
A3: Yes. Please inform us formally before our production and
confirm the design firstly based on our sample.
Q4: What is your best service?
A4: 1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after -
sales service be well.
Q5. How about your delivery time?
A5: Generally, it will take 7-15 days after receiving your deposit.
The specific delivery time depends on the items and thequantity of
your order.
Q6:How about your Warranty Term?
A6: 2-year warranty. Structure design, installation problem, system
problem, how to use the screen…don’t worry, we have professional
after-sale team to solve your any questions after you placed an
order. And your exclusive sales engineer will also help you get
over any problems.
