P0.9 COB Small Pixel Pitch Indoor Display With High Resolution And
Ultra Thin Cabinet
Product Description:
The P0.9 COB Fine Pixel Pitch LED Display is a cutting-edge
solution for street advertising, delivering an exceptional visual
experience with a fine pixel pitch of just 0.9mm. Weighing only
4.6kg, its ultra-thin, die-cast aluminum frame makes it perfect for
outdoor advertising, allowing for easy mobility and quick setup.
Features:
- Utilizes a full flip-chip COB process with protection
technologies for anti-collision, waterproofing, moisture
resistance, and salt spray.
- Incorporates 3D ink printing technology, enhancing contrast by
20% while lowering brightness requirements.
- Includes an LCD status display panel for real-time monitoring of
cabinet operation.
- Employs an HDI multi-layer circuit board design for excellent
color uniformity and temperature distribution.
- Features Sunrise's energy-saving common cathode chip, offering
superior performance and grayscale levels up to 16-bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm | | LED Type | COB | COB | COB | COB | | Cabinet Dimensions | 600337.535mm | 600337.535mm | 600337.535mm | 600337.535mm | | Module Size | 150x168.75mm | 150x168.75mm | 150x168.75mm | 150x168.75mm | | Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg | | Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | | Driving Type | 1/36 | 1/36 | 1/27 | 1/48 | | Maintenance | Front service | Front service | Front service | Front service | | Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits | | Max/Avg Power | 390/136 W/m² | 420/147 W/m² | 330/100 W/m² | 330/100 W/m² | | IP Rating | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | | Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz | | Installation Type | Mounting, Hanging, Stacking | Mounting, Hanging, Stacking | Mounting, Hanging, Stacking | Mounting, Hanging, Stacking | | Gray Scale | 16bit | 16bit | 16bit | 16bit | | Viewing Angle | H:170°, V:170° | H:170°, V:170° | H:170°, V:170° | H:170°, V:170° | | Operational Temp | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | | Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
|
Applicaiton:
COB features a high pixel density for exceptional clarity, making
it ideal for close-range viewing. Suitable for use in monitoring
rooms, meeting rooms, TV stations, conferences, and similar
applications.

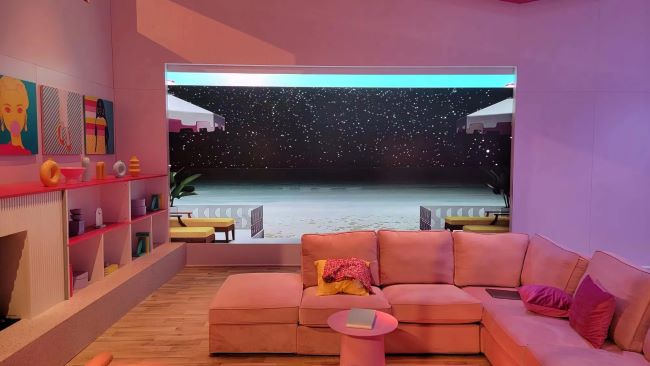

COB For Home Entertainment
COB For Meeting Room
Our Advantage:
Full Front Maintance
Seamless Display With Arbitrarily Splicing
Stable Running Temperature
FAQ:
Q1: What control system is used, and how does it work?
A1: We use the Nova Taurus Series asynchronous control system,
which supports cluster playback and management. You can easily
control it via various devices, including APP, smartphone, Wi-Fi,
iPad, laptop, PC, or through cloud control. It's very user-friendly
and convenient.
Q2: Can I place a sample order for an LED screen?
A2: Yes, we encourage sample orders for testing and quality
evaluation. Mixed samples are also accepted.
Q3: Can I have my logo printed on the product?
A3: Absolutely. Please let us know in advance and confirm the
design based on our sample before production begins.
Q4: What is your delivery time?
A4: Typically, delivery takes 7-15 days after the deposit is
received. However, the exact time depends on the order size and
items.
Q5: What is your warranty policy?
A5: We offer a 2-year warranty. We also provide full support for
structure design, installation issues, system troubleshooting, and
screen usage.
Our professional after-sales team, along with your dedicated sales
engineer, will assist with any questions you may have after your
order.
