COB Small Pixel Pitch Display With Small Dimension Module And
Light-Weight Cabinet
Product Description:
Flip-Chip Chip-On-Board (COB) technology delivers premium LED
experiences with precision colour reproduction and very high
contrast. Supported by Common Cathode technology, COB LED runs with
much lower power consumption than traditional LED screens.
Benefit from excellent viewing angles, consistent vibrant colours,
superb brightness and long-lasting performance for high impact
display projects generating crisp, clear viewing without fading or
distortion in any ambient light, whether it’s day or night, bright
or dark. With Sharp’s established reputation for quality and a
protective finish for durability, you can enjoy visual excellence
for the lifetime of the screen.
Product Features:
- Reliability – Achieved through the high durability, reliability,
and low failure rates of Flip-Chip Chip-On-Board (COB) LEDs, with
optional redundant power and control for added security.
- Large-scale, High-impact – The fully bezel-free design and
impressive contrast ratios create an immersive, premium viewing
experience.
- Energy Efficiency – COB with Common Cathode technology typically
consumes less than half the power of standard SMD LED screens,
producing less heat and reducing air conditioning needs, leading to
significant energy savings.

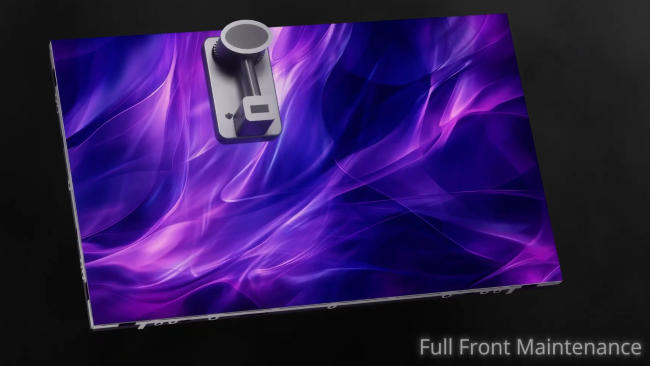

- Easy Maintenance – Front-accessible LED modules simplify
maintenance, ensuring quick and easy servicing.
- Comprehensive Solutions – LED solutions come complete with all the
components needed to install, operate, and maintain your display
investment.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm | | LED Type | COB | COB | COB | COB | | Cabinet Dimensions | 600337.535mm | 600337.535mm | 600337.535mm | 600337.535mm | | Module Size | 150x168.75mm | 150x168.75mm | 150x168.75mm | 150x168.75mm | | Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg | | Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | | Driving Type | 1/36 | 1/36 | 1/27 | 1/48 | | Maintenance | Front service | Front service | Front service | Front service | | Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits | | Max/Avg Power | 390/136 W/m² | 420/147 W/m² | 330/100 W/m² | 330/100 W/m² | | IP Rating | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | | Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz | | Installation Type | Mounting, Hanging, Stacking | Mounting, Hanging, Stacking | Mounting, Hanging, Stacking | Mounting, Hanging, Stacking | | Gray Scale | 16bit | 16bit | 16bit | 16bit | | Viewing Angle | H:170°, V:170° | H:170°, V:170° | H:170°, V:170° | H:170°, V:170° | | Operational Temp | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | | Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
|
Our Advantage:
High Gray Scale
High Resolution
Seamless Display With Arbitrary Splicing
High Resolution
FAQ:
Q1: What control system is used, and how does it work?
A1: We use the Nova Taurus Series asynchronous control system,
which supports cluster playback and management. You can easily
control it via various devices, including APP, smartphone, Wi-Fi,
iPad, laptop, PC, or through cloud control. It's very user-friendly
and convenient.
Q2: Can I place a sample order for an LED screen?
A2: Yes, we encourage sample orders for testing and quality
evaluation. Mixed samples are also accepted.
Q3: Can I have my logo printed on the product?
A3: Absolutely. Please let us know in advance and confirm the
design based on our sample before production begins.
Q4: What is your delivery time?
A4: Typically, delivery takes 7-15 days after the deposit is
received. However, the exact time depends on the order size and
items.
Q5: What is your warranty policy?
A5: We offer a 2-year warranty. We also provide full support for
structure design, installation issues, system troubleshooting, and
screen usage.
Our professional after-sales team, along with your dedicated sales
engineer, will assist with any questions you may have after your
order.
