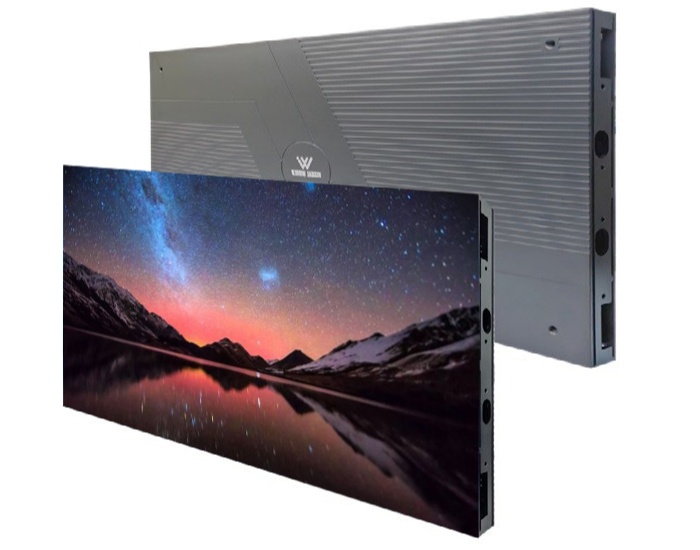

P1.25 Small Pixel Pitch LED Display COB With Micro Thin Ultra-HD
For Indoor
Product Description:
Discover the cutting-edge display technology of the P1.25 Small
Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD.
This 600x337.5mm cabinet, featuring front service access, is
tailored for seamless integration and easy maintenance, making it a
preferred choice for event professionals.
Features:
- Full flip-chip COB process, protection technology includes
anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the
contrast by 20% and reduces the requirements for display
brightness.
- Supports LCD status display panel, which can intuitively understand
the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with
good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode
chip, which has higher performance and a grayscale level of up to
16bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm | 600*337.5*35mm |
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/36 | 1/27 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m2 | 420/147 W/m2 | 330/100 W/m2 | 330/100 W/m2 |
| IP Rating | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°；V:170° | H:170°；V:170° | H:170°；V:170° | H:170；°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications:
Advertising publish / retail store / shopping mall / display of
dishes / welcome display / self-service business / exhibition hall
/ airport / subway / elevator / restaurant & hotel supplies /
education / medical treatment /
Support and service:
We offer full-service support at every stage of engagement.
Pre-Purchase:
You'll comprehensive production instructions and expert guidelines
on setting up the equipment.
During Purchase:
We deliver tailored solutions, creative visual designs, and
impressive project examples
Post-Purchase:
Enjoy a two-year warranty, a dedicated maintenance staff, prompt
support, availability of spare parts, complimentary training,
package tracking, and ongoing software updates.
FAQ:
Q1: What is the control system? How is it?
A1: We use Nova Taurus Series asynchronous control system. Support
cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/
PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can I have a sample order for led screen?
A2: Yes, we welcome sample order to test and check quality. Mixed
samples areacceptable.
Q3: Does there have any warranty?
A3: Yes, all products come with a two-year warranty.
Q4: What is the cost of shipping?
A4: Shipping costs vary by weight; we’ll choose the most affordable
and secure option based on your quantities.
Q5: How does your factory ensure quality control?
A5: Quality is our top priority. Each product is fully assembled
and thoroughly tested before packing and shipping.
