Carbon Fiber LED Display Lightweight With Energy Saving For Stage
Event
Product Description:

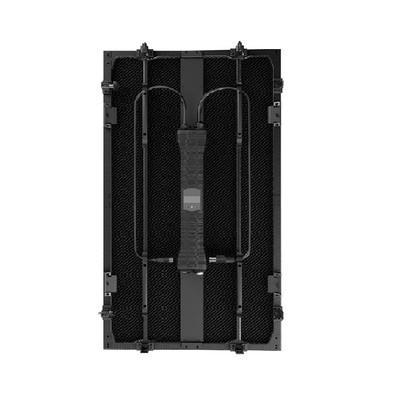

Introducing the Carbon Fiber Light-Weight Cabinet for Stage Events
Elevate your event experience with our state-of-the-art Carbon
Fiber Light-Weight Cabinet, meticulously engineered for exceptional
performance and sustainability. This cutting-edge cabinet combines
durability with feather-light construction, making it the perfect
solution for stage setups where mobility and efficiency are
paramount.
Product Features:
Ultra-Lightweight Design: Crafted from high-quality carbon fiber, this cabinet is designed
to be effortlessly portable, allowing for quick and easy
installations and adjustments during your events.
Energy Efficient: Our cabinet is built with energy-saving technology, ensuring that
you can enjoy vibrant displays while minimizing power consumption,
making it both eco-friendly and cost-effective.
14-Bit Gray Scale: Experience stunning visual fidelity with our 14-bit gray scale
technology, delivering smooth transitions and an incredible range
of colors. Your visuals will be more dynamic and lifelike,
captivating your audience like never before.
Product Technical Parameters:
| Product Model: | CFI-4.8 | | Pixel Pitch: | 4.8 mm | | LED Type: | SMD2020 | | Cabinet Dimension: | 500x1000 mm | | Cabinet Resolution: | 128*256 | | Module Size: | 250x250 mm | | Module Resolution: | 64*64 | | Pixel Density: | 65536 dots/sqm | | Cabinet Weight: | 58kg | | Cabinet Material: | Carbon Fiber | | Driving Type: | 1/16 | | Brightness: | 5500 nits | | Max/Avg Power: | 800/280 W/m2 | | Maintenance: | Front & Rear service | | Environment: | Indoor Use | | IP Rating: | IP30 | | Refresh Rate: | >3840 Hz | | Installation Type: | Mounting/Hanging | | Gray Scale: | 14 bits | | Viewing Angle: | H:140°；V:140° | | Operational Temp: | -20℃~+50℃ | | Operational Humidity: | 10%~90% RH |
|
Product Applications:
For events like:Speech,Concert,Party, Game Sports,Wedding,Company
Dinner and so on.
Q & A:
Q1: How many LED modules are included in a panel?
Each 500x1000mm panel contains 8 LED modules, each measuring
250x125mm.
Q2: Can I request a sample of the indoor P2.9 LED panel for
demonstration?
Yes, you can. Please reach out to our sales team via email or phone
to check for availability.
Q3: Is it safe to install the panel near an indoor swimming pool?
Yes, the panel can be installed near water, but special treatment
is required for the modules and PCB to ensure protection against
moisture.
Q4: Do you offer a 500x1000mm panel for P2.6?
We do not have a 500x1000mm panel made from carbon material for
P2.6. However, we have other models available. Please contact us
for more details.
Q5: How do I perform front service on the panel?
You can remove the modules using a vacuum front service tool. To
access the power box, simply remove the screws.
