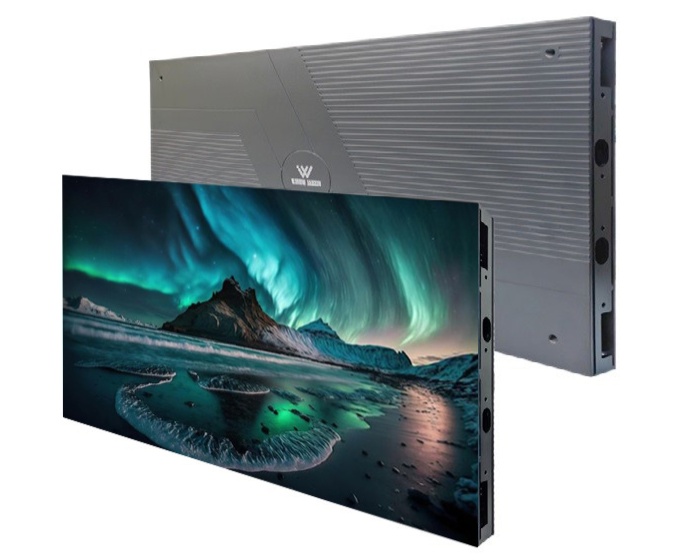

P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet

    Buy cheap P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet from wholesalers

    Buy cheap P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet from wholesalers
    • Buy cheap P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet from wholesalers
    • Buy cheap P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet from wholesalers
    • Buy cheap P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet from wholesalers
    • Buy cheap P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet from wholesalers

    P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet

    Ask Lasest Price
    Brand Name : Visual World
    Model Number : P0.7
    Certification : EMC,CE,FCC,ROHS
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 5000 sqm/month
    Delivery Time : 12 work days
    • Product Details
    • Company Profile

    P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet

    P0.7 COB Small Pitch LED Display 600*337.5 Die-casting Aluminum 4.6kg Cabinet


    Product Description:

    Introducing our cutting-edge COB Small Pixel Pitch Display, designed to redefine visual experiences. This innovative display technology boasts superior performance and efficiency, which is ideal for various applications, from high-end digital signage to immersive virtual reality experiences.

    Features:

    • The full flip-chip COB process integrates cutting-edge protection technologies, including anti-collision, waterproofing, moisture resistance, and salt-spray protection. These features effectively mitigate problems like LED screen blindness or caterpillar defects caused by exposure to high humidity or salt-laden environments.
    • This module incorporates 3D ink printing technology, which boosts contrast by 20% and reduces the brightness requirements for display.
    • A built-in LCD status display panel provides users with real-time insights into the cabinet’s operational status.
    • The PCB design features an HDI multi-layer circuit structure, ensuring uniform color representation and stable temperature management.
    • The series adopts Sunrise’s energy-efficient common cathode chips, delivering exceptional performance with grayscale levels of up to 16 bits.

    Technical Parameters:

    ModelP0.7P0.9P1.25P1.56
    Pixel Pitch0.7mm0.9mm1.25mm1.56mm
    LED TypeCOBCOBCOBCOB
    Cabinet Dimension600*337.5*35mm600*337.5*35mm600*337.5*35mm600*337.5*35mm
    Module Size150x168.75 mm150x168.75 mm150x168.75 mm150x168.75 mm
    Cabinet Weight4.6kg4.6kg4.6kg4.6kg
    Cabinet MaterialDie-casting AluminumDie-casting AluminumDie-casting AluminumDie-casting Aluminum
    Driving Type:1/361/361/271/48
    maintenanceFront serviceFront serviceFront serviceFront service
    Brightness0-2000 nits0-2000 nits1500 nits1000 nits
    Max/Avg Power390/136 W/m2420/147 W/m2330/100 W/m2330/100 W/m2
    IP Rating

    Front: IP65

    Rear: IP30

    Front: IP65

    Rear: IP30

    Front: IP65

    Rear: IP30

    Front: IP65

    Rear: IP30

    Refresh Rate>3840Hz>3840Hz>3840Hz>3840Hz
    Installation Type

    Mounting

    Hanging

    Stacking

    Mounting

    Hanging

    Stacking

    Mounting

    Hanging

    Stacking

    Mounting

    Hanging

    Stacking

    Gray Scale16bit16bit16bit16bit
    Viewing AngleH:170°;V:170°H:170°;V:170°H:170°;V:170°H:170;°V:170°
    Operational Temp-20℃~+50℃-20℃~+50℃-20℃~+50℃-20℃~+50℃
    Operational Humidity10%-90%RH10%-90%RH10%-90%RH10%-90%RH

    Applications:

    • Digital Signage system
    • Chain store
    • Street furniture
    • Billboard
    • Football stadium
    • Perimeter LED poster
    • Arena display, etc.


    FAQ:

    Q1: What control system is used, and how does it work?
    A1: We use the Nova Taurus Series asynchronous control system, which supports cluster playback and management. You can easily control it via various devices, including APP, smartphone, Wi-Fi, iPad, laptop, PC, or through cloud control. It's very user-friendly and convenient.

    Q2: Can I place a sample order for an LED screen?
    A2: Yes, we encourage sample orders for testing and quality evaluation. Mixed samples are also accepted.


    Q3: What kind of led display we provide?
    A3: We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.

    Q4: Do your led display comply with international certification standards?
    A4: Yes, our led display comply with various international certification standards, such as CE certification, RoHS
    certification, FCC certification, and so on.

    Q5: Do you support custom design and customization requests for your led display?
    A5: Yes, we can provide custom design and customization production according to customers' needs to meet their special
    requirements and demands.


    Q6: How about the warranty?
    A6: 2 years warranty.
