P0.9 Small Pixel Pitch LED Display COB High Durability And
Definition For Sport Bar
Product Description:

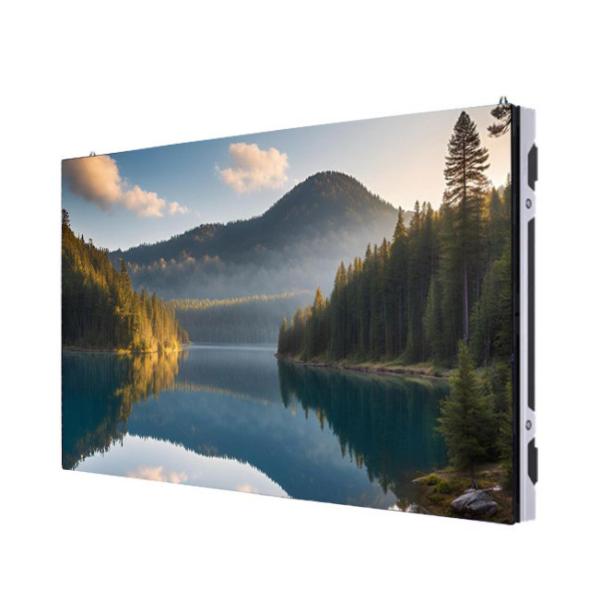

The P0.9 Small Pixel Pitch LED Display COB from VISUAL WORLD
represents a leap forward in display technology, offering
high-definition visuals with exceptional precision. Its ultra-fine
pixel pitch of just 0.9mm ensures stunningly detailed and sharp
imagery, making it ideal for applications requiring unmatched
visual clarity and detail. Designed for convenience and
flexibility, this COB LED display features a compact 600x337.5mm
module that is easy to install. Its cabinet, made from die-cast
aluminum, combines a sleek modern design with enhanced durability
while maintaining a lightweight structure.
Features:
- The complete flip-chip COB process incorporates protective
technologies such as anti-collision, waterproofing, moisture
resistance, and salt spray resistance. These features safeguard LED
screens against blinding or malfunction caused by damp conditions
in high-humidity and salt-spray environments.
- The module employs 3D ink printing technology, which improves
contrast by 20% and reduces the need for higher display brightness.
It also includes an LCD status display panel for user-friendly,
real-time cabinet operation monitoring.
- Its PCB design features an HDI multi-layer circuit board, ensuring
consistent color uniformity and even temperature distribution. The
series integrates Sunrise’s energy-efficient common cathode chip,
providing superior performance with up to 16-bit grayscale levels.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m² |
| IP Rating | Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type | Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Service and support:
Our comprehensive service system is designed to cater to your needs
at every stage.
Pre-sale services include prompt responses to inquiries within 24 hours, market
research and forecasts, customized solutions tailored to your
requirements, and the provision of data sheets and samples. We also
offer additional services such as custom packing and arranging
factory visits.
In-sale process, we ensure continuous monitoring of production, provide photos and
videos upon request, and include free spare parts to enhance your
experience.
After-sales support, we address complaints within 24 hours and offer maintenance
guidance and solutions within 48 hours. A 24-month warranty, free technician training, and a complete set
of documents, including an installation guide, software manual,
maintenance guide, and control system software CD back our
services.
FAQ:
Q1: Do you offer customized services?
A1: Yes, we can design various product categories tailored to your
requirements.
Q2: Can our logo be printed on the LED screen product?
A2: Yes, we can print your logo as per your request.
Q3: Is it possible to order a sample of the LED display screen?
A3: We sincerely welcome you to order a sample to test and evaluate
the quality. You can choose any item that interests you.
Q4: What is the shipping cost?
A4: The shipping cost depends on the screen size and project details
provided in your inquiry.
Q5: How much does the screen cost per square meter?
A5: Please send us your inquiry, and our professional sales engineers
will provide you with the best solutions.
Q6: Do you provide a warranty for the products?
A6: Yes, we offer a two-year warranty for all our products.
